Optical fiber cleaver is mainly used for cutting optical fiber. The quality of the cutting knife of the optical fiber welding machine directly determines the quality of the optical fiber cutting, including whether the end face of the optical fiber is smooth, whether the angle of the end face meets the technical requirements, etc.
Product application: In the connection of all optical fibers, such as communication optical cable construction, fault repair and LAN optical cable construction, the end face of the connected optical fiber should be cut well, which must use the optical fiber cleaver.

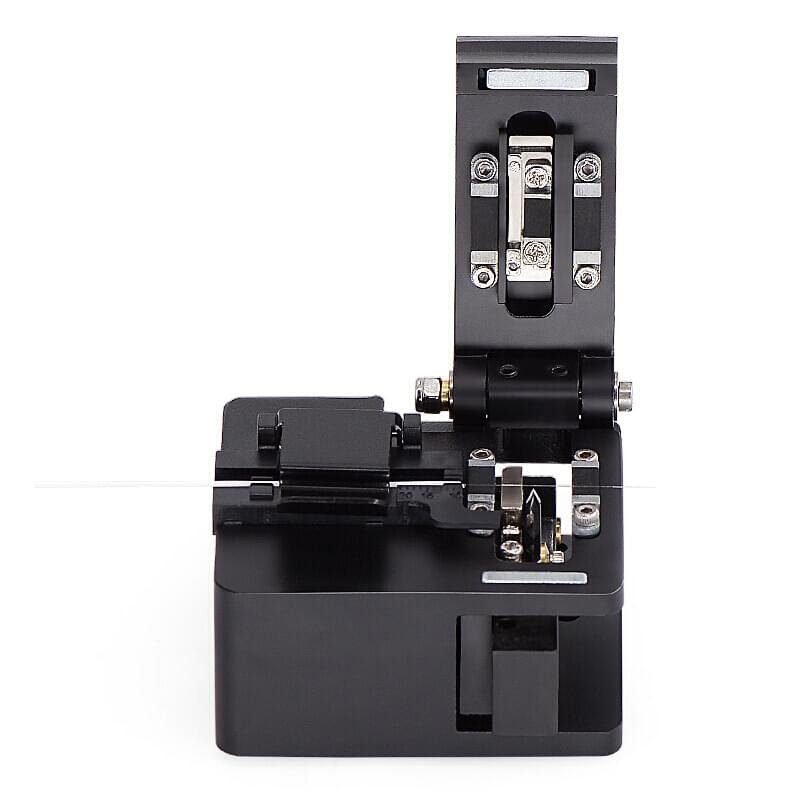

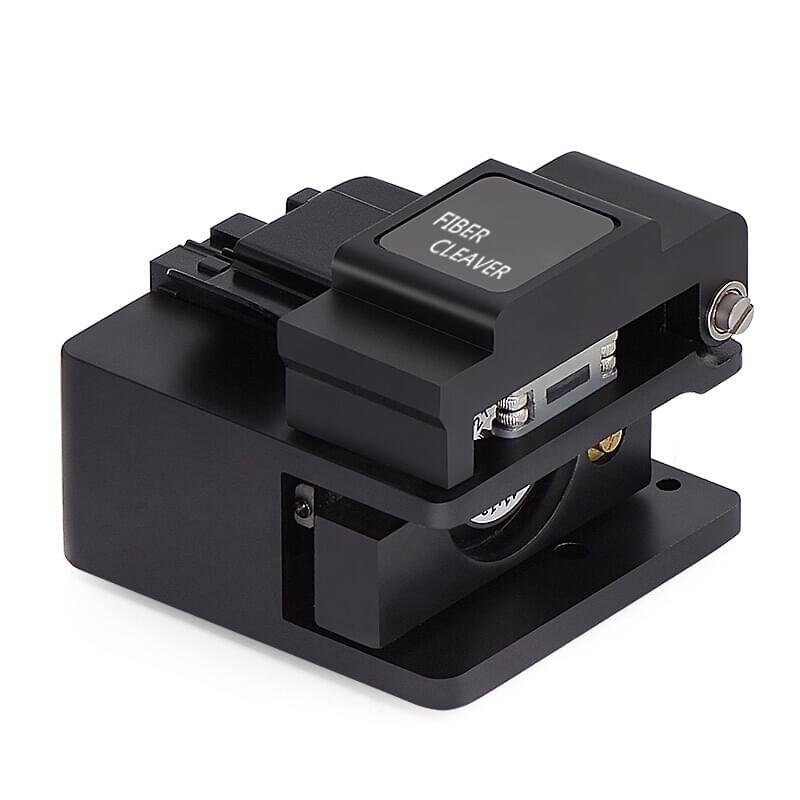

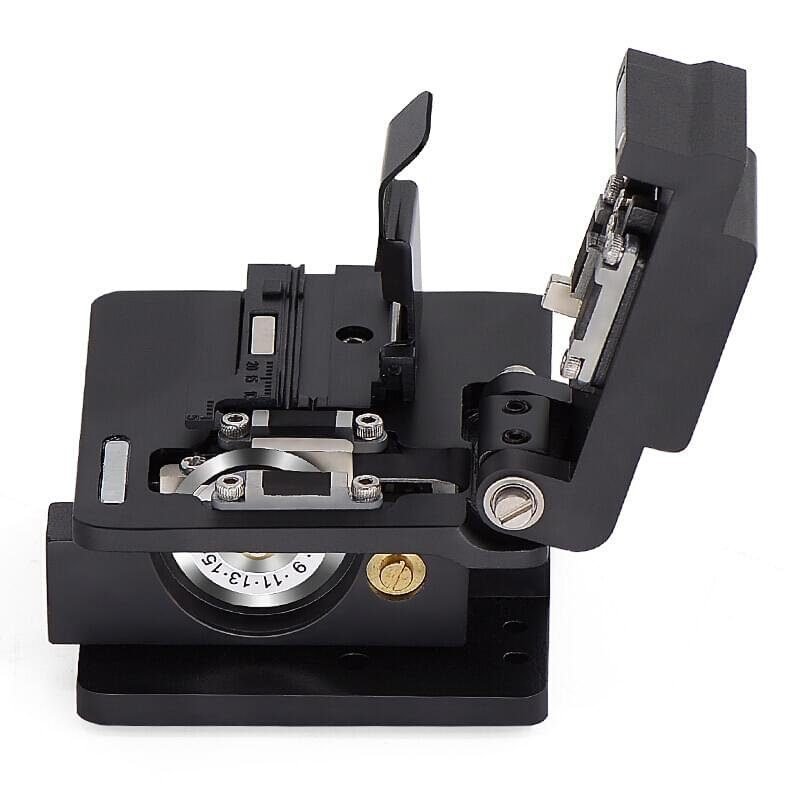

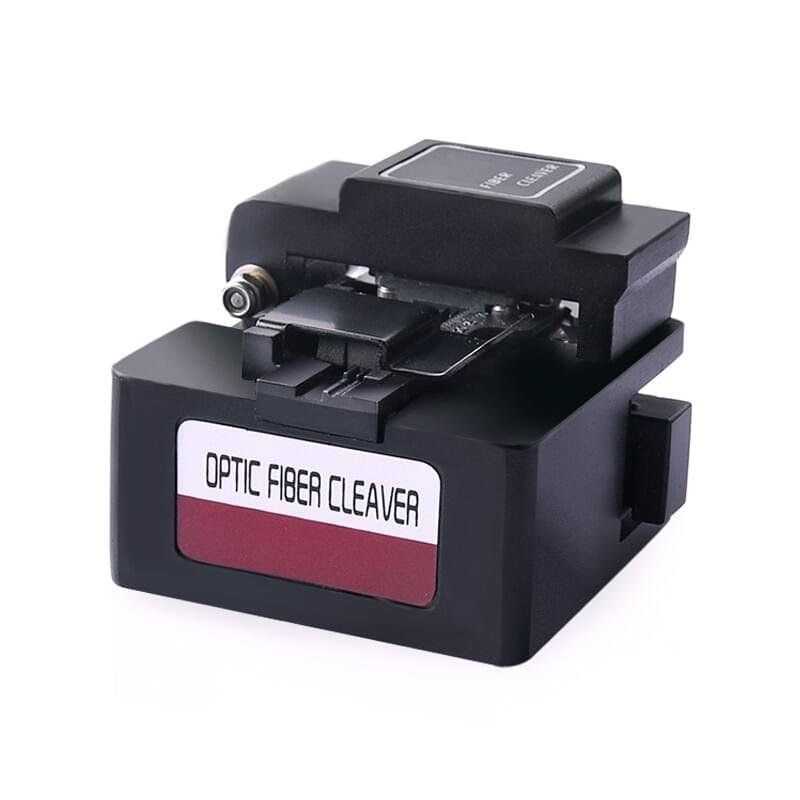

UN-PON high precision FTTH optical fiber cleaver fiber optic cable cutter tool
| Item | Specification |
|---|---|
| Adapt to optical fiber | Single-core silica optical fiber |
| To adapt optical fiber coating diameter | φ0.25 & φ0.9 |
| Adapt to the bare fiber diameter | 125μm |
| Cutting the fiber length | 9 ~ 16mm (φ0.25) 10 ~ 16 (φ0.9) |
| Dimensions | 60mm (W) × 57mm (D) × 46mm (H) |
| Weight | About 385g |
| Cutting angle adaptation value | ≤ 0.5 ° |
| Edge life | 48000 times |
