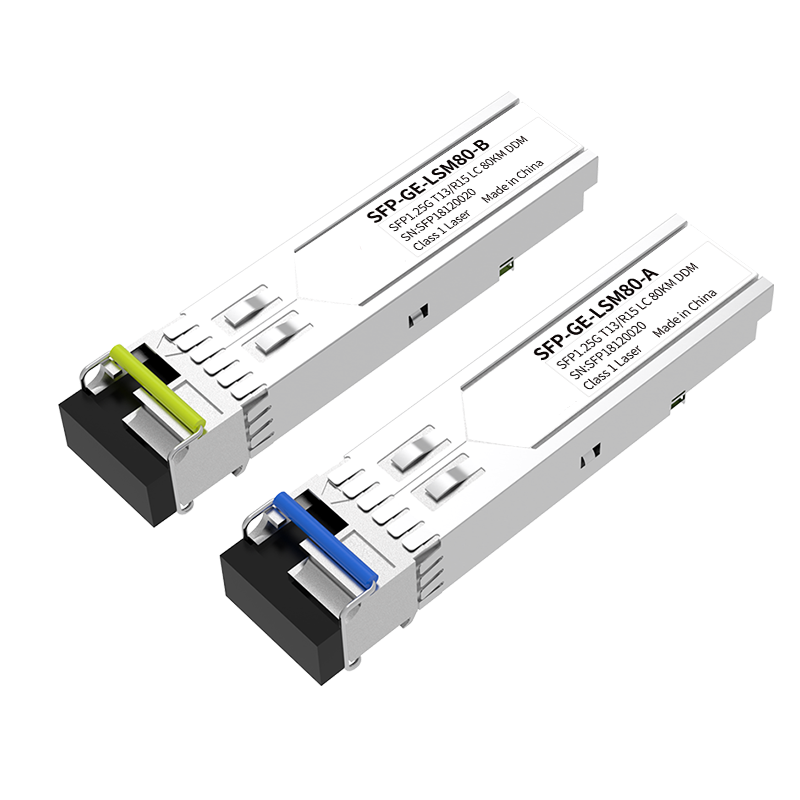

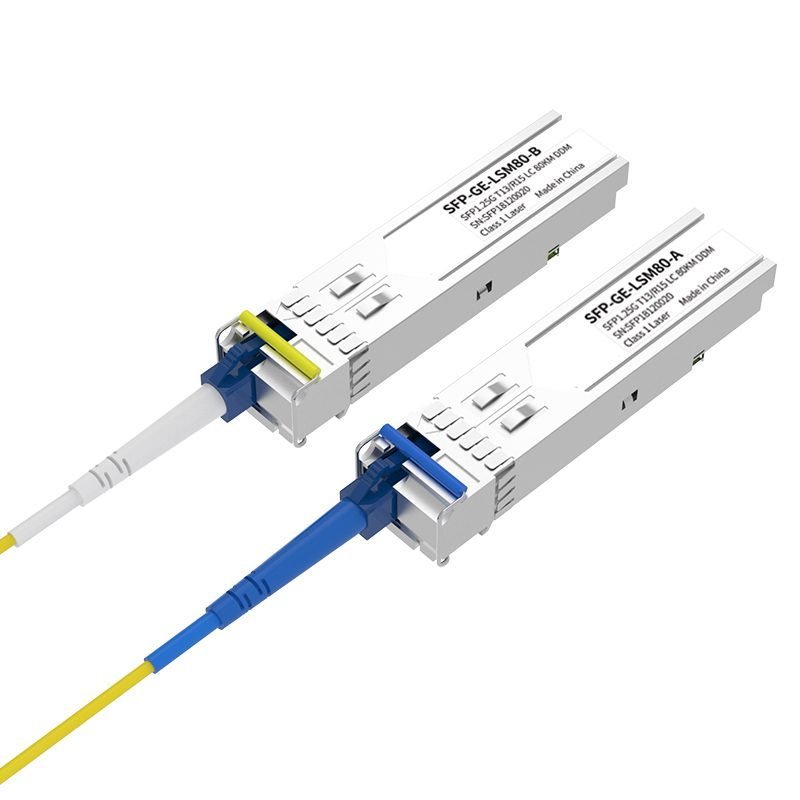

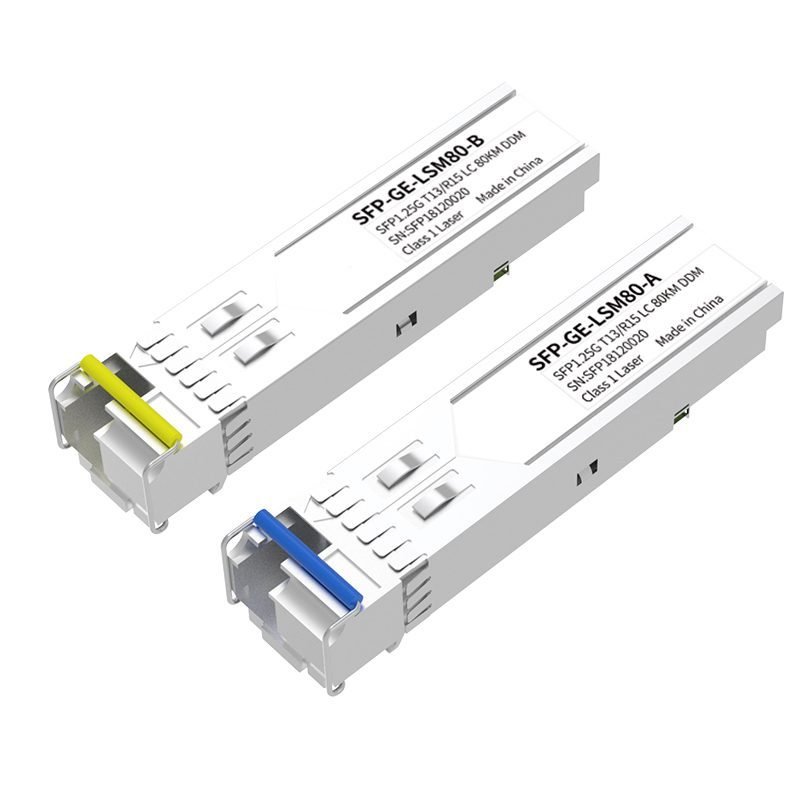

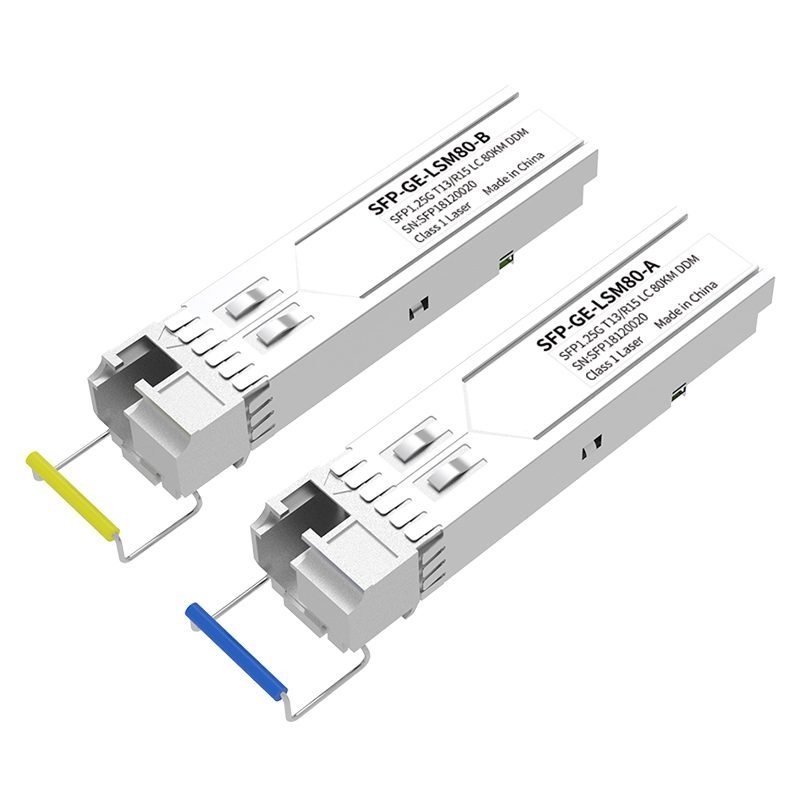

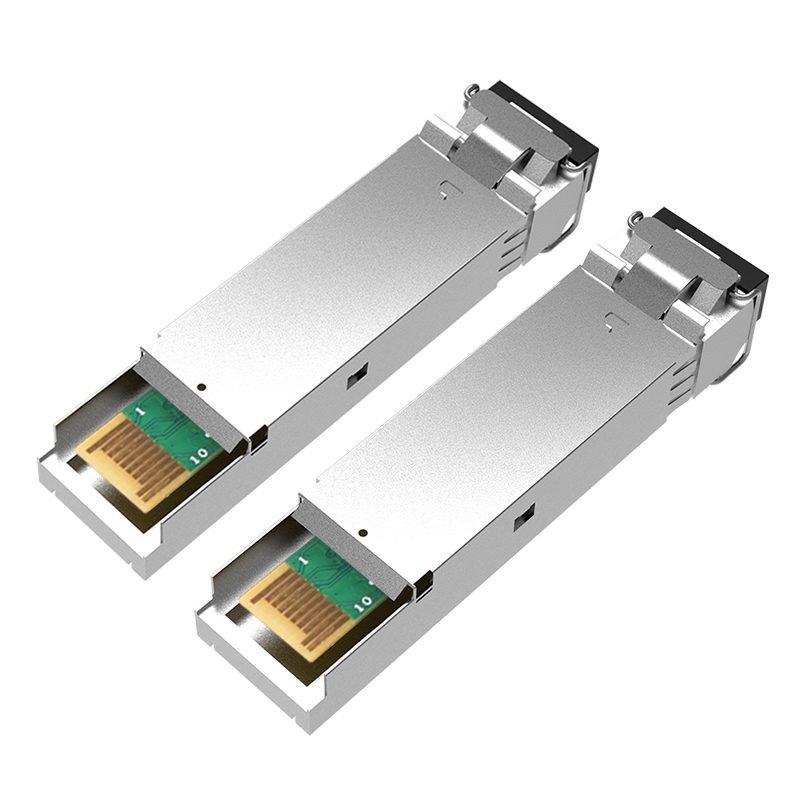

LSM-80 GE SFP LC Single Fiber 80KM

GE SFP LSM-80

Up to 80km transmission on SMF
Up to 1.25Gbps
1310nm FP laser and PIN receiver
Single LC/SC receptacle optical interface compliant
2-wire interface for integrated Digital Diagnostic monitoring
Hot pluggable
Very low EMI and excellent ESD protection
+3.3V power supply
Power consumption less than 1.0W
Operating case temperature: 0~+70°C

SFP-GE-LSM-80 SFP Module is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 80km application

GE SFP LC Optical Transceiver Single Fiber 80KM Optical Transceiver
Material	Metal
Color	Silver
Data Rate	1.25Gbps
Weight	20g
Fiber Interface	LC (SC/ST/FC optional)
Fiber Type	Single fiber
Transmission Distance	80KM
Wavelength	1310nm
Voltage	3.3V
