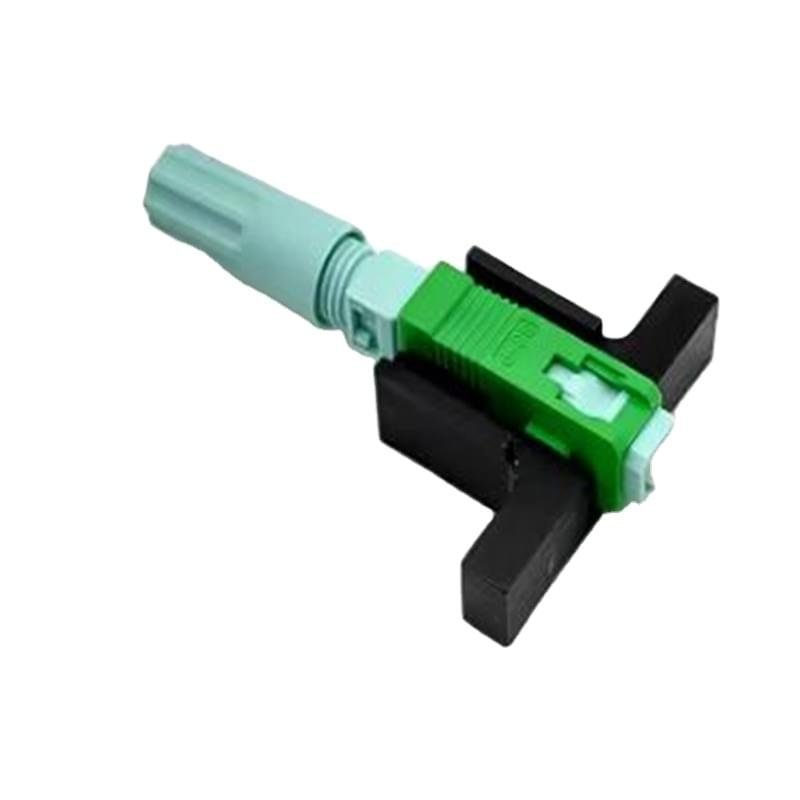

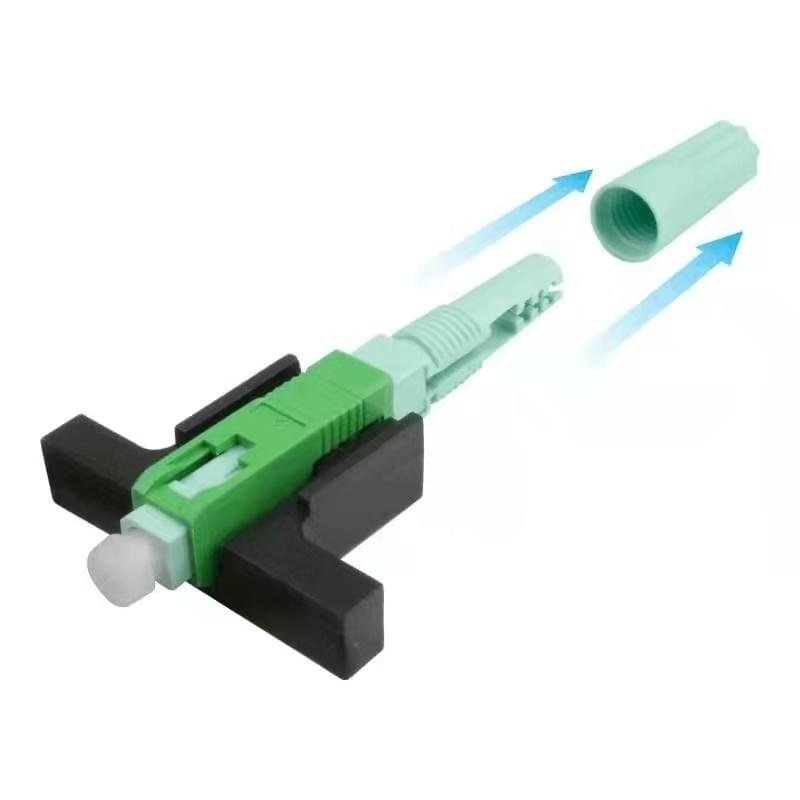

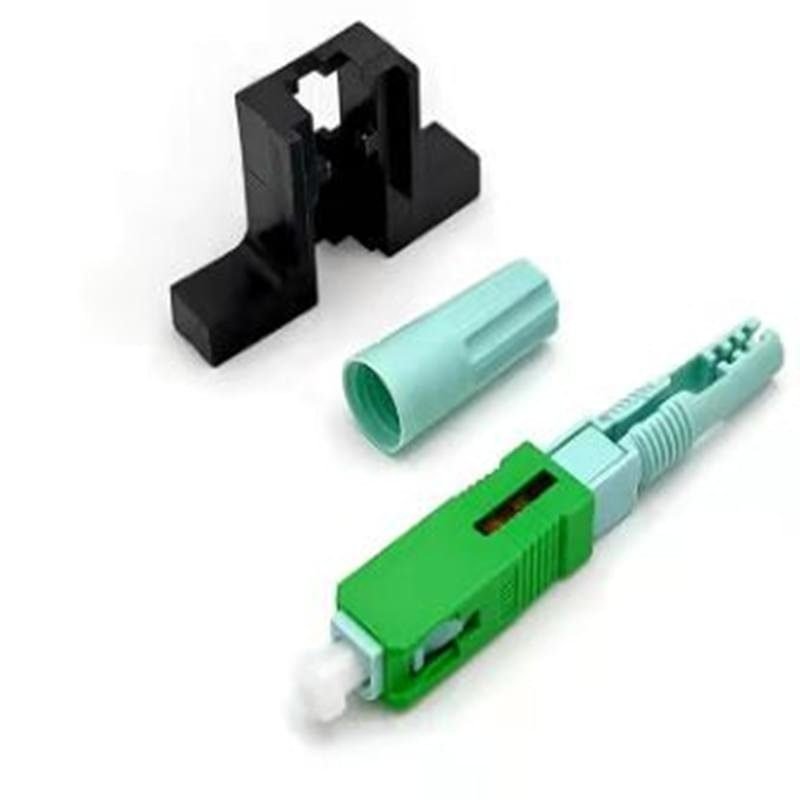

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability. Applicable to 2*3,2*1.6 cables.
| Parameters | Value |
|---|---|
| Insertion Loss | ≤ 0.3 dB |
| Repeatability (500 Mating Times) | ΔI.L. ≤ 0.3 dB |
| Return Loss | ≥ 45dB |
| Temperature cycle | ΔI.L. ≤ 0.3 dB |
| Tensile strength | F>50N |
| Vibration test | ΔI.L. ≤ 0.3 dB |
| Operating Temperature | -20 ~ +75℃ |
| Flooding test | ΔI.L. ≤ 0.3 dB |
| Storage Temperature | -40 ~ +85℃ |
| Tensile strength | F>50N |
