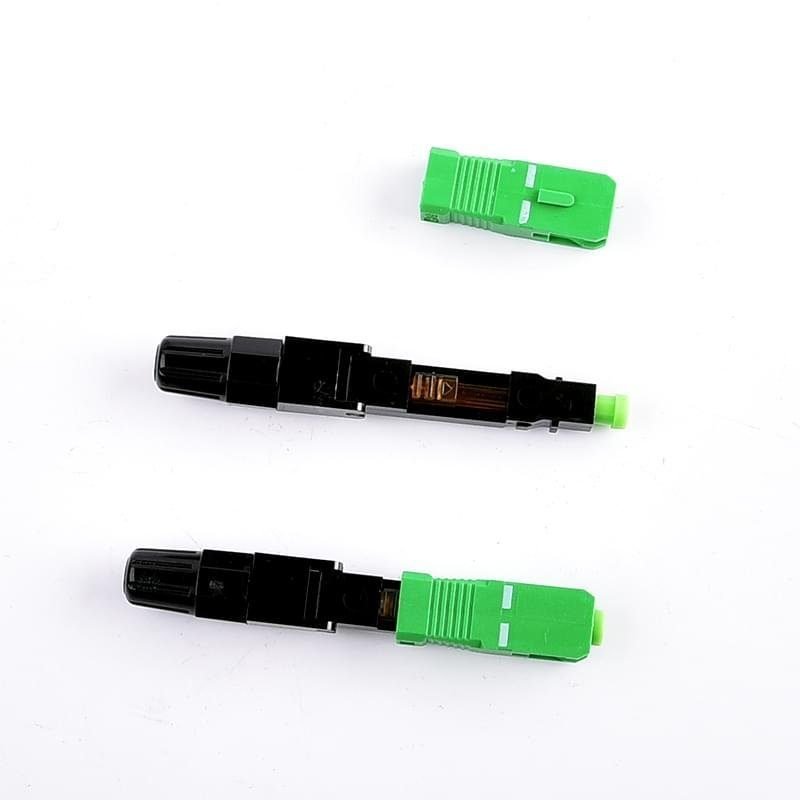

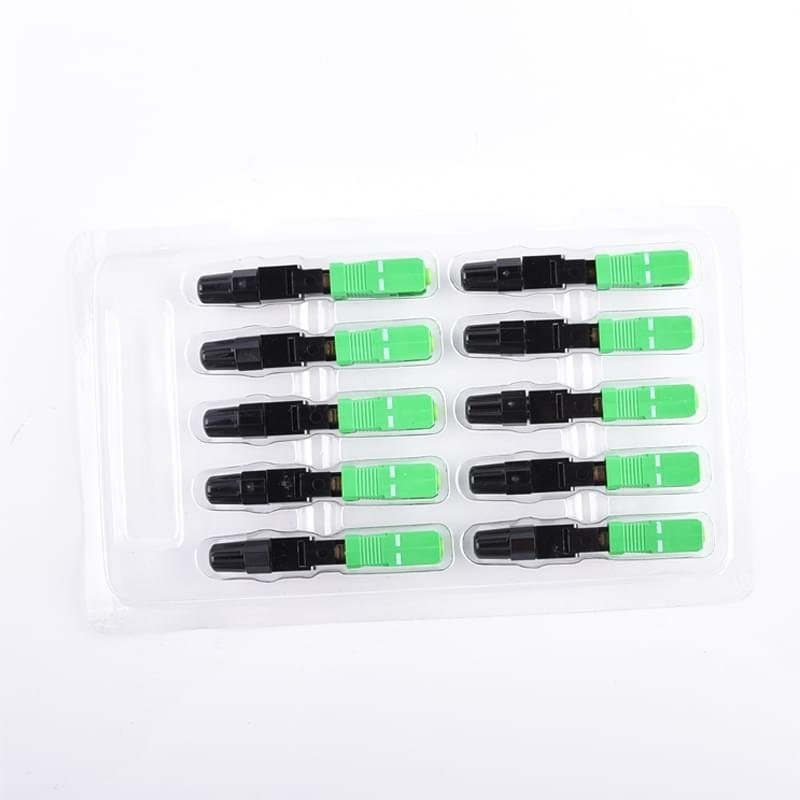

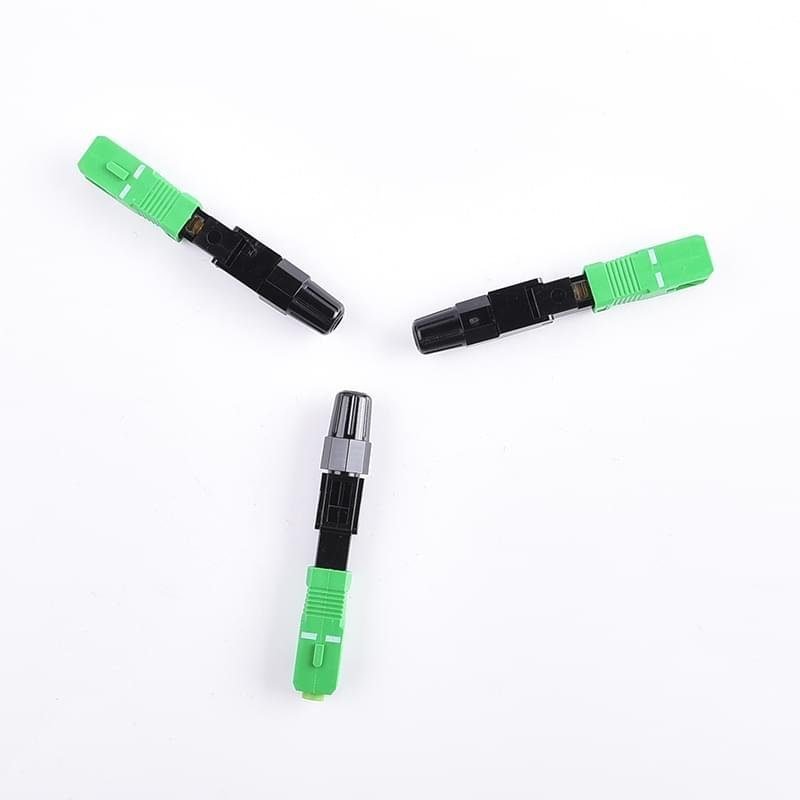

BT-PON quick connector installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .Installed with high quality and high success rate and fast and other characteristics .Can be reused, the scene is simple.Easy to carry
| Fast Connector Specification | Value |
|---|---|
| Mode | SM / MM |
| Polish | UPC / APC / PC |
| Insertion Loss | Typical ≤0.2dB, Maximum ≤0.3dB (UPC) / ≤0.25dB (APC) |
| Return Loss | ≥50dB (UPC) / ≥65dB (APC) / ≥35dB (PC) |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB (1000 times mating) |
| Tensile Strength | > 10kg |
| Temperature | ≤0.2dB (-40~+85℃ sustain 100 hours) |
| Humidity | ≤0.2dB (+25~+65℃, 93% R.H. 100 hours) |
