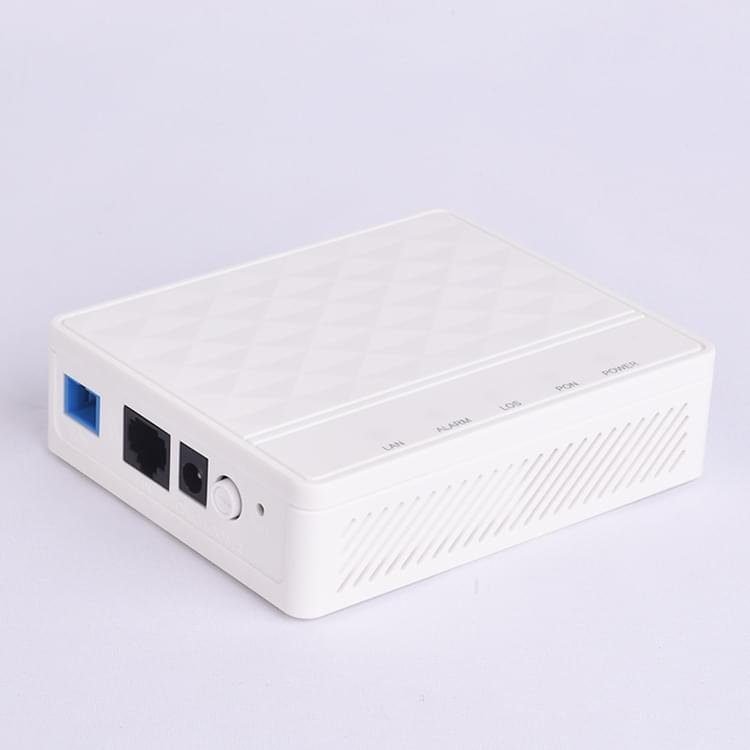

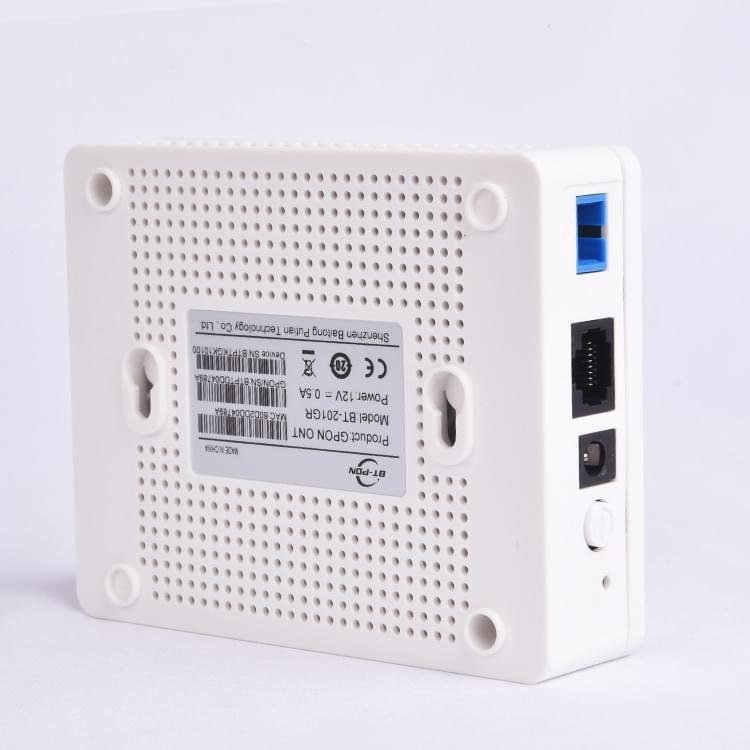

UN-201GR model 1GE ONU is a user terminal device independently developed by BT-PON in line with such industrial background.The device has built-in two-layer switching function . With compact structure and small appearance, it is a kind of FTTH GPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
UN-201GR features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
| Hardware Specifications | |
|---|---|
| Size | 110*89*29mm |
| Optical signal access | GPON |
| User interface | 1GE |

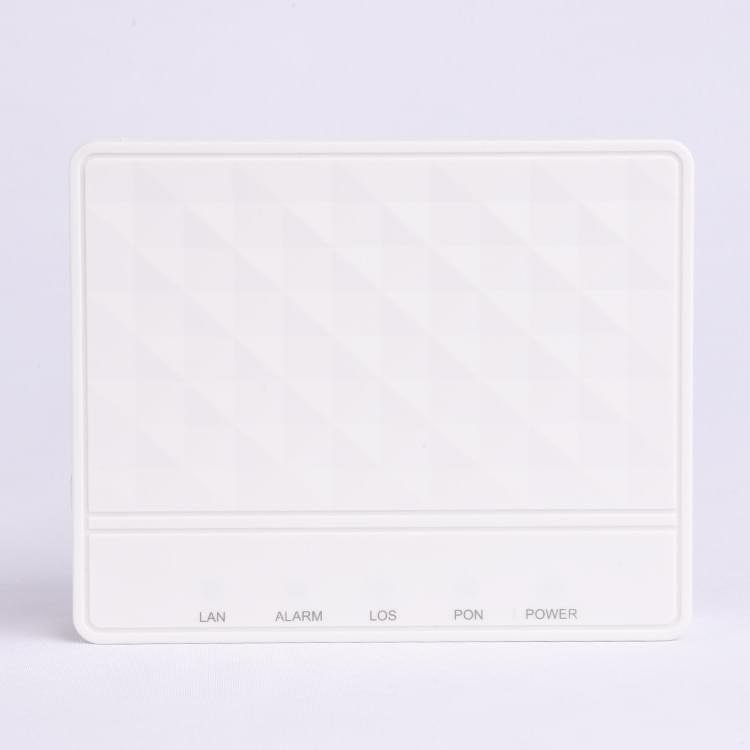

| Indicator light | POWER/PON/LOS/LAN |
| Button | Power switch Button, Reset Button |
| Weight | 85g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，0.5A |
| Power consumption | <6w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | SC/UPC or SC/APC |
| Working wavelength | up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power sensitivity | ≤-28dBm |
| Transmission distance | 0～20km |
| Transmission rate | Uplink 1000Mbps；downlink 1000Mbps |
| Ethernet Interface | |
| Interface type | RJ45 |
| Interface parameters | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces |
