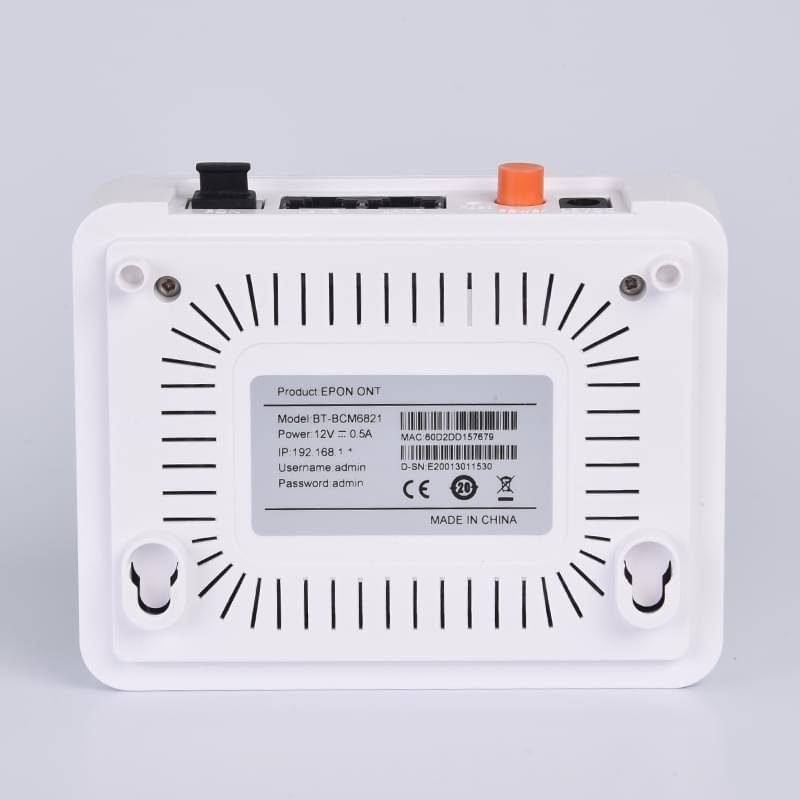

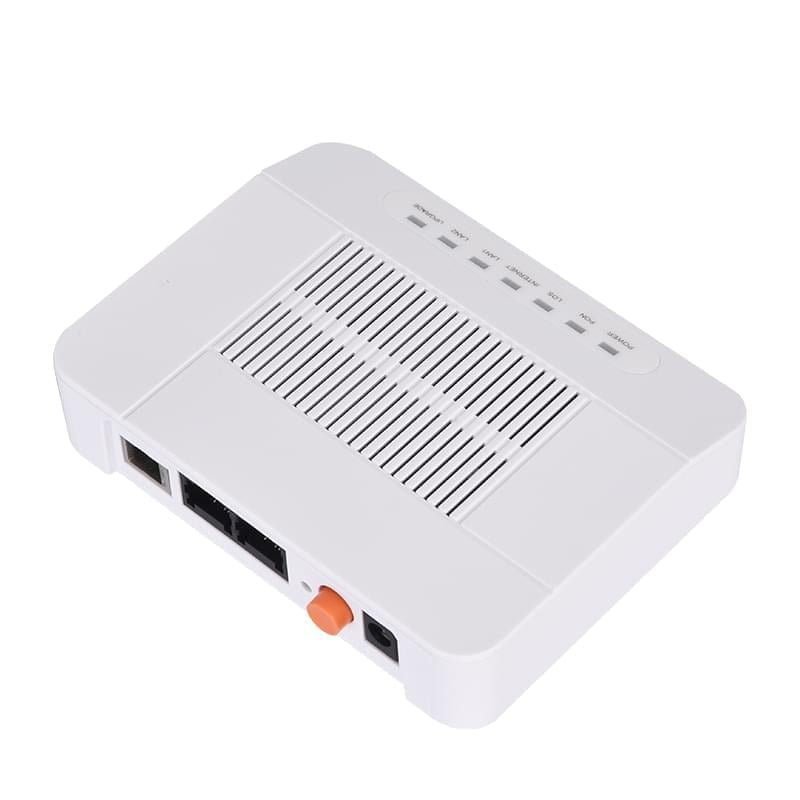

UN-BCM6821 model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH EPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
| Hardware Specifications | |
|---|---|
| Item | Specification |
| Size（L*W*H） | 120mm (L) ×90mm (W) ×35mm (H) |
| Optical signal access | 1*EPON |
| User interface | 2FE |

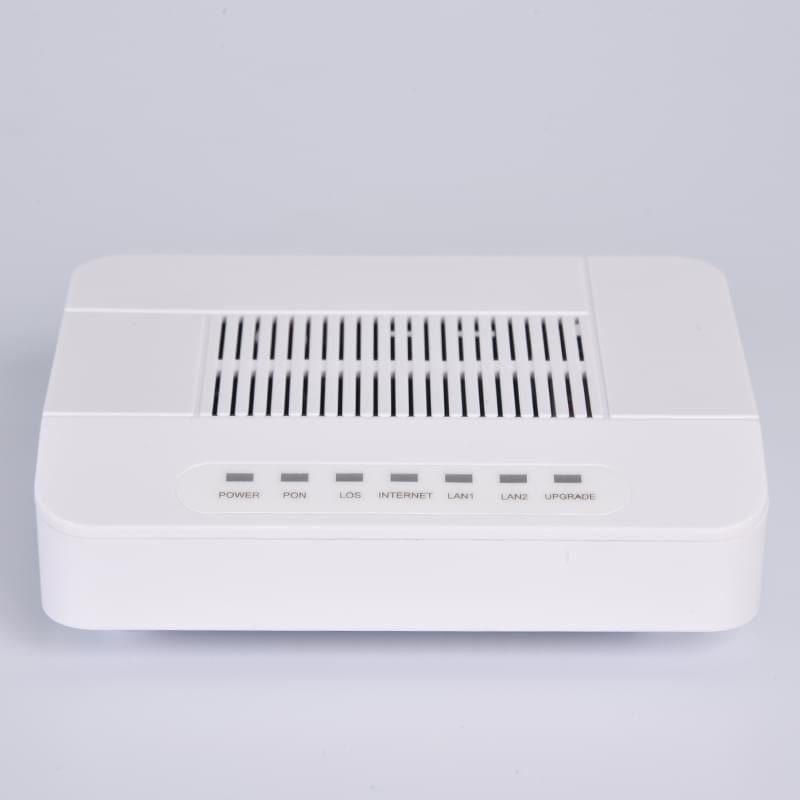

| Indicator light | POWER/PON/LOS/INTERNET/LAN1/LAN2/UPGRADE |
| Button | Power switch Button, Reset Button |
| Weight | 150g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，0.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | EPON-ONU-PX20+ |
| Working wavelength | up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power sensitivity | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | Uplink 1.244Gbps；downlink 1.244Gbps |
| Ethernet Interface | |
| Interface type | RJ45 |
| Interface parameters | 2*10/100Mbps auto adaptive Ethernet interfaces |
