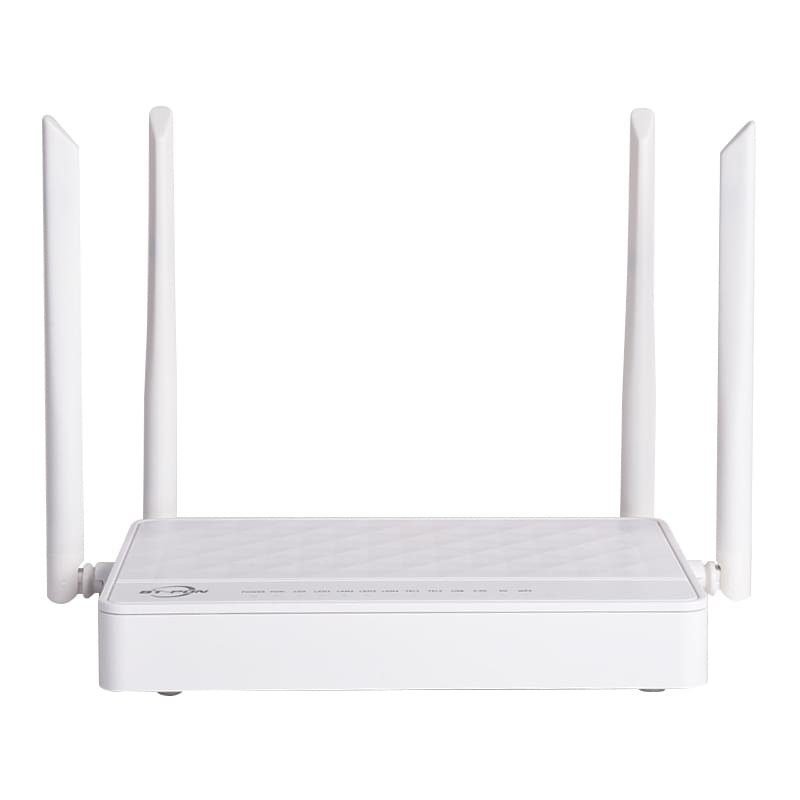

UN-761XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
| Hardware Specifications | |
|---|---|
| Item | Specification |
| Size（L*W*H） | 205mm (L) *140mm (W) *30mm (H) |
| Optical signal access | 1*GPON/EPON |

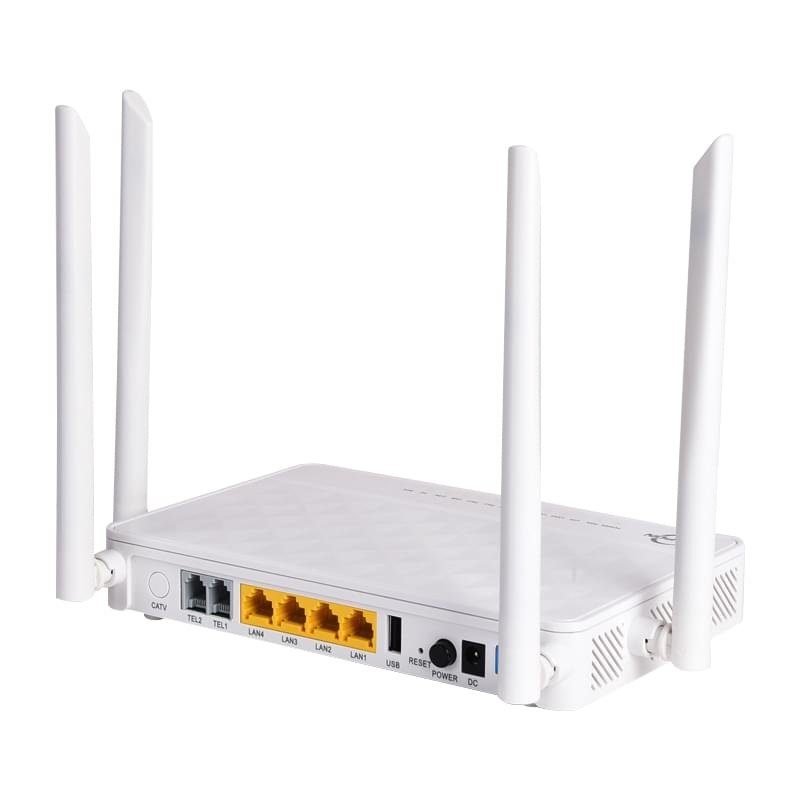

| User interface | 4GE+2VOIP+2.4G/5.8G WLAN+1USB |

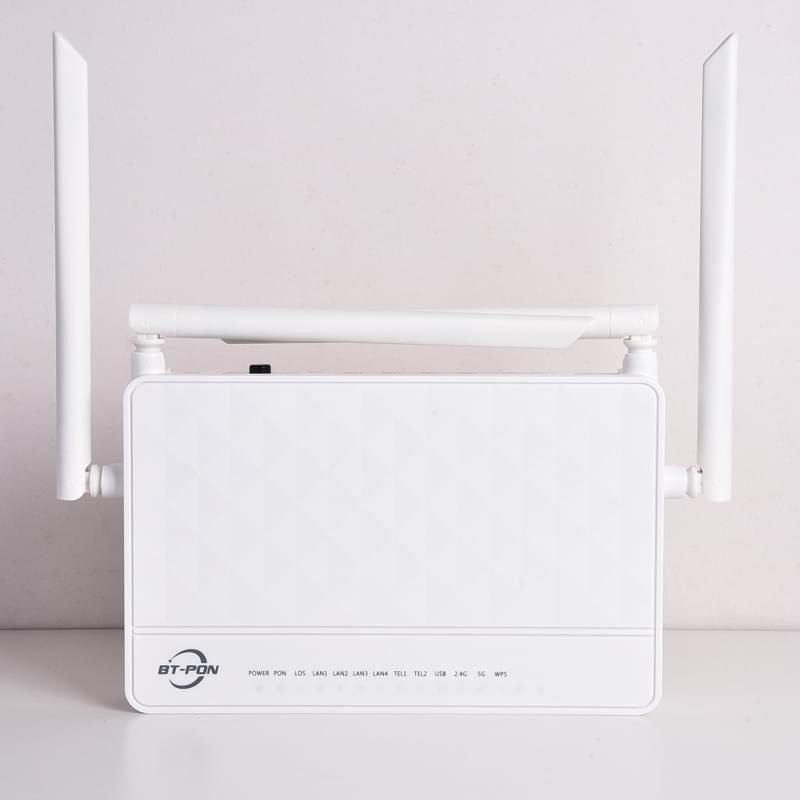

| Indicator light | POWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、TEL1、TEL2、USB、2.4G、5G、WPS |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 300g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | SC/UPC |
| Working wavelength | PON：up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power value | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | GPON: Up 1.244Gbps；down 2.488Gbps EPON: Up 1.244Gbps；down 1.244Gbps |
| Ethernet Interface | |
| Interface type | 4*RJ45 |
| Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n/AC |
| Antenna pattern | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz/80MHz |
| Interface rate | 2.4G WLAN：Maximum rate 300Mbps 5.8G WLAN：Maximum rate 866Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
| POTS Interface | |
| Interface type | 2*RJ11 |
| Voice agreement | SIP |
| Codecs | G.711/G.723/G.726/G.729 |
| Integrated circuit protocol | Gr-909 protocol is applicable |
