1550nm Optical Amplifier EDFA WDM 16/32/64 Ports

◉ Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.

◉ Simplified machine-room links, improve the system reliability, and largely reduce the network maintenance cost

◉ Can compatible with any FTTx PON technology: EPON/GEPON, GPON

◉ Total output power optional 1260~13000mW ( 31~41dBm )

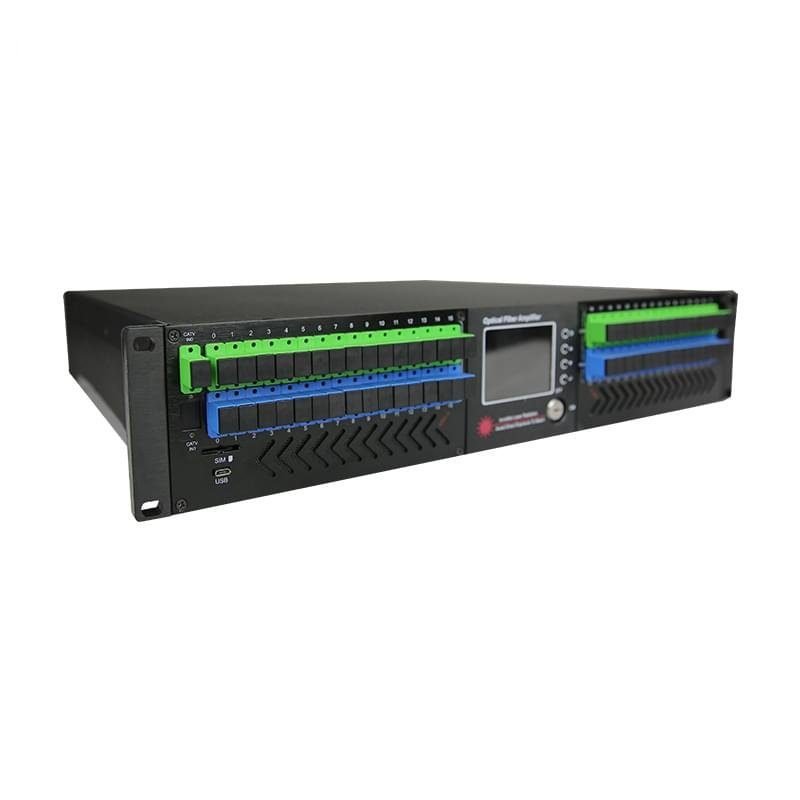

◉ 19″ 2U rack up to optional 64 up-link ports, which used in OLT; And 64 1550nm output optical ports, multiplex the 1310/1490nm data stream.

◉ Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR, MER degradation of the system

◉ Low noise figure ≤5.5dB

◉ Perfect RS232 ,SNMP

◉ Telecom level safety reliability and network management

◉ Efficient space, simple and reliable in construction/maintenance

◉ Optional dual optical input, built-in 2 × 1 optical switch

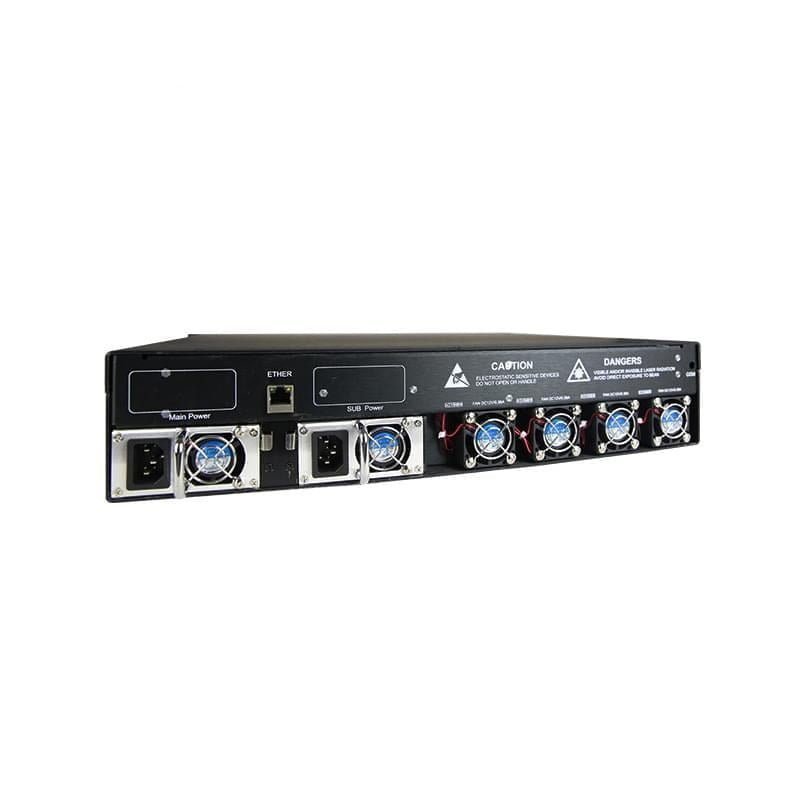

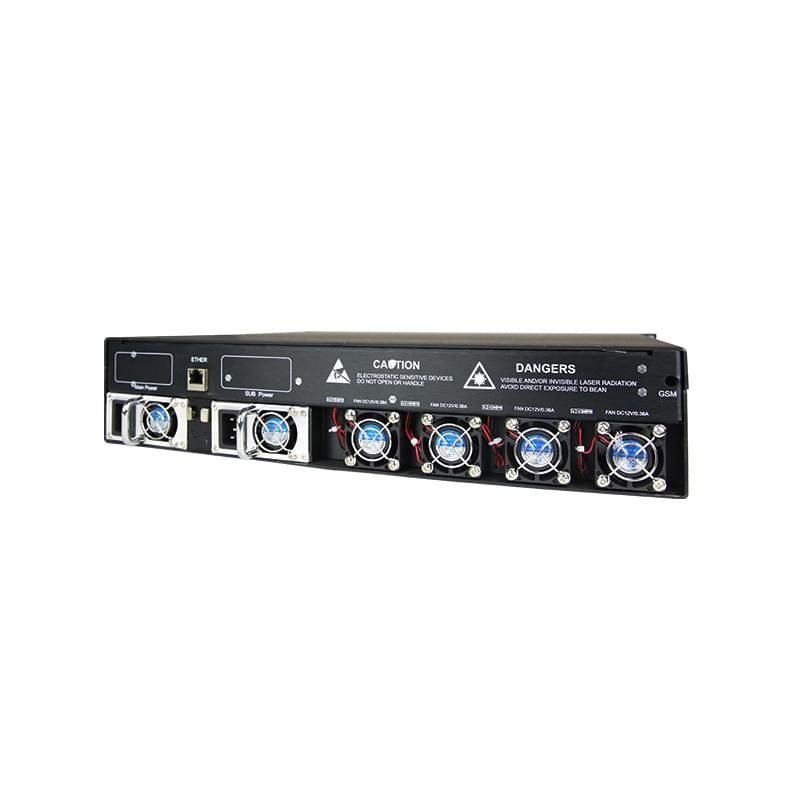

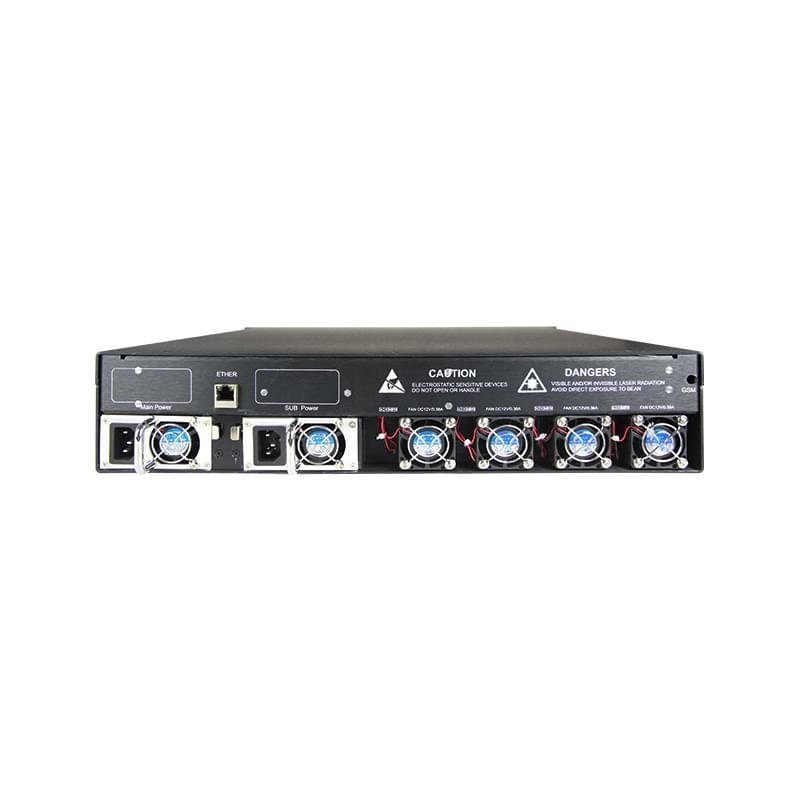

◉ Dual power supply optional, 1+1 backup

◉ Can reduce the 98% device space usage

◉ Can reduce the 85% device purchase cost

◉ Can reduce 95% power consumption

◉ Industry’s best price-performance

WS-56EYA series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)’s output optical port multiplex 1310/1490n’s data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

WS-56EYA optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.

WS-56EYA has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.

WS-56EYA optical amplifier adopts the world’s top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port.

1550nm EDFA 16/32/64 ports 22db 21db WDM Fiber Optical Amplifier EDFA WS-56EYA1U

Technical Parameters	WS-56EYA1U
Wavelength	1535-1565nm
Input power range	-5dBm~+10dBm(normal input -2dBm~+5dBm)
Output optical power	26dBm~37dBm
Optical power stability	±0.1dBm
Noise figure	≤ 5.0dB(Pin=0dB)
Input return loss	≥ 45dB
Output return loss	≥ 45dB
C/N	≥ 50dB
C/CTB	≥ 63dB
C/CSO	≥ 63dB
Optical connector	SC/APC; SC/PC; LC/APC; LC/PC
Supply voltage	AC220V(160V ~ 265V) / AC110V(90 ~130V) / DC48V(38 ~ 58V)
Consumption	≤ 50w
Working temperature	-5℃ ~ +42℃
Storage temperature	-30℃ ~ +70℃
Maximum working relative humidity	Max 95% non-condensing
Package size (1pc)	580(W)485(L)110(H)mm
Package size (2pcs)	600(W)515(L)250(H)mm
Size	380(W)482(L)44(H)mm
Weight	6.5kg/pc
