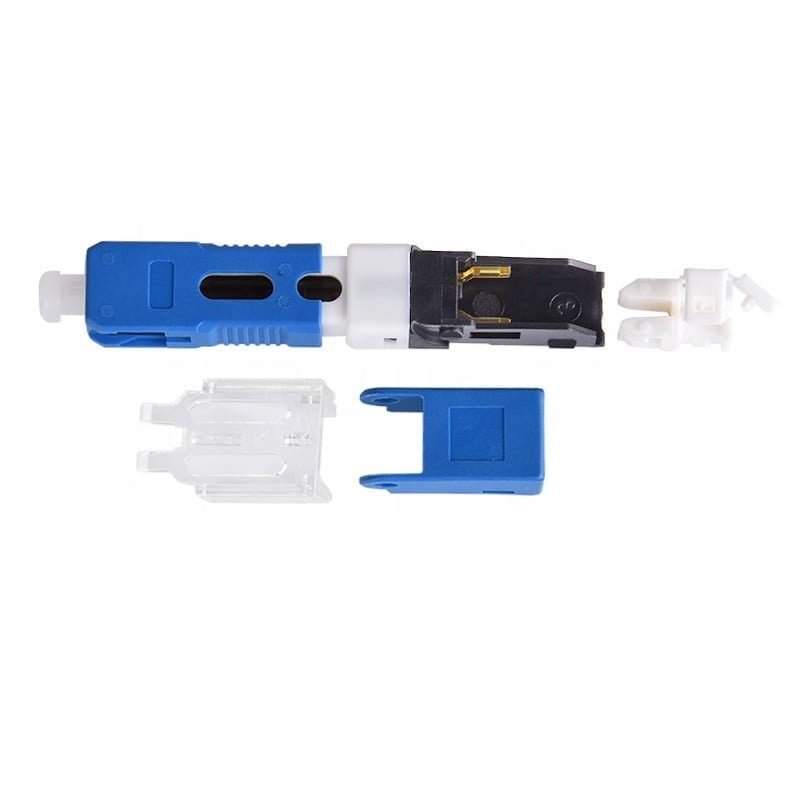

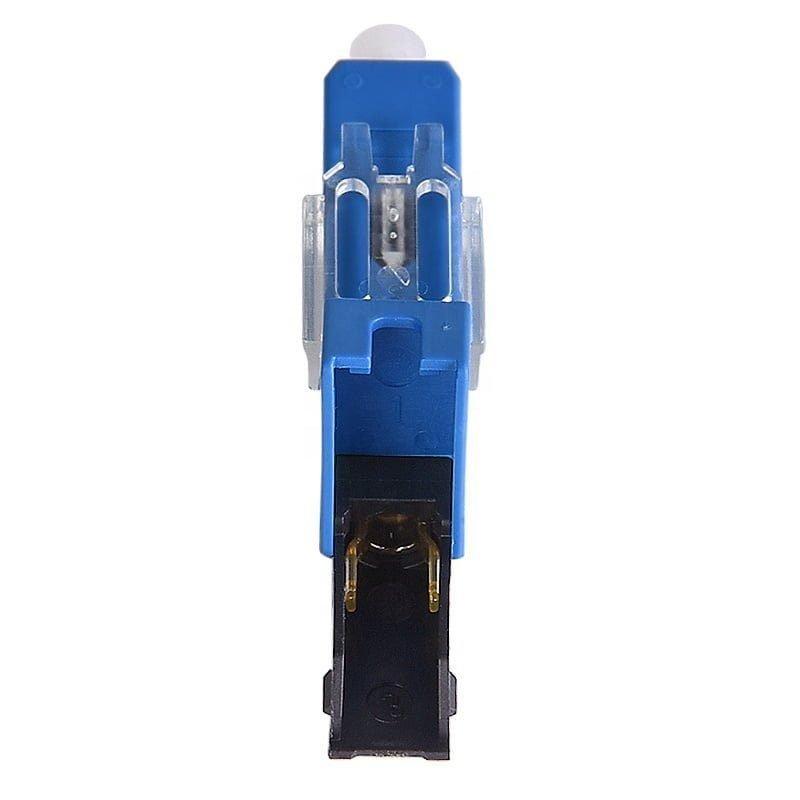

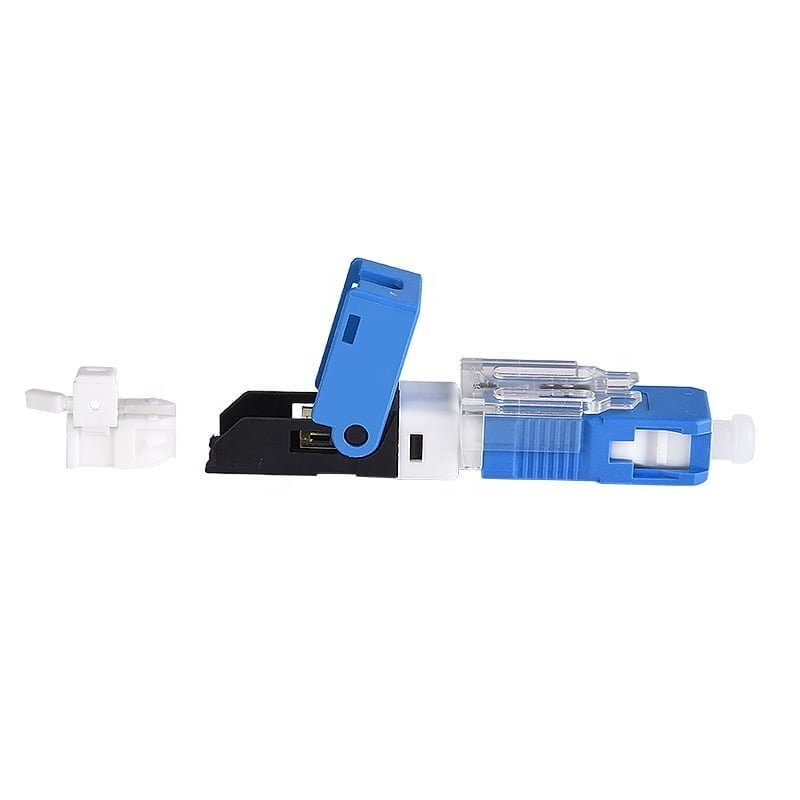

UN-PON’s Fast Optical Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.
Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.
| Item | Parameter |
|---|---|
| fiber Scope | 0.9mm tight buffer |
| Size | 43.5 mm |
| Fiber Diameter | 125μm (652 & 657) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 60s (exclude fiber presetting) |
| Insertion Loss | ≤ 0.2dB (1310nm & 1550nm) |
| Return Loss | ≤ -50dB |
| Success Rate | >98% |
| Reusable Times | unlimited |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >40 N |
| Temperature | -40 ~ +85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability (500 times) | IL ≤ 0.3dB |
| Drop Test (4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
