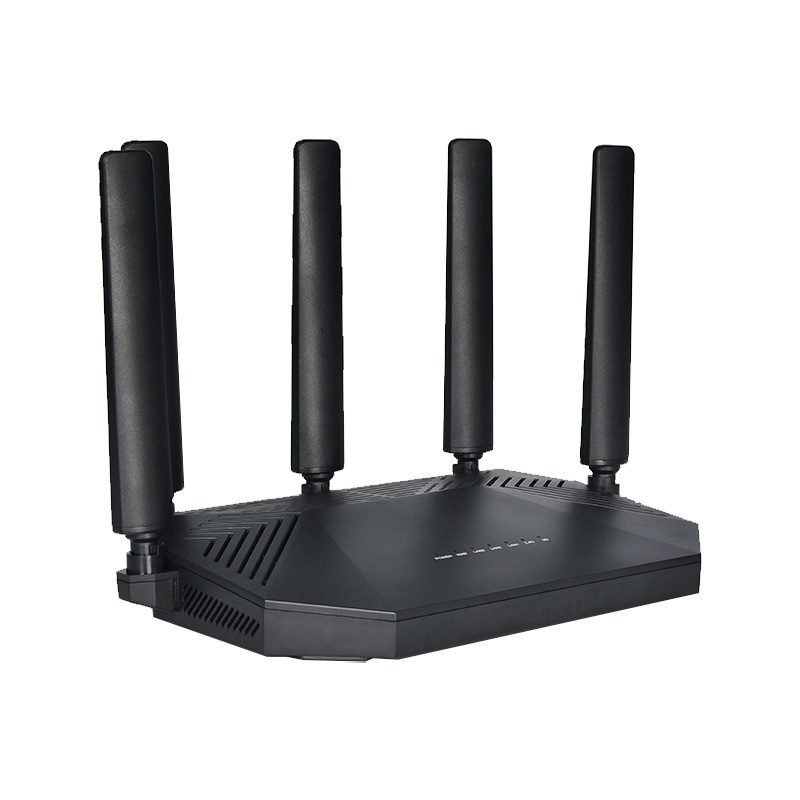

The HAX3068-C supports the latest IEEE 802.11AX protocol standard, MU-MIMO, and Beamforming functions to maximize multi user convergence speed and meet high-quality network service requirements during use. Supports up to AX3000 WIFI speed and easily supports high-definition videos, online games, and other network applications. In addition to supporting high-speed WIFI6 functionality, it also supports firewall, QoS, remote home and small and medium-sized enterprise management, and other functions. Users provide stable services.
| Item | Specification |
|---|---|
| Wireless Protocol | 2.4GHz IEEE 802.11 b/g/n 2T2R 5GHz IEEE 802.11a/n/ac/ax 2T2R |
| Wireless Transfer Rate | 2.4G=576Mbps 5G=2400Mbps |
| Antennas | 2*2.4G 5dBi fixed Antenna built-in 2*5G 5dBi fixed Antenna built-in |

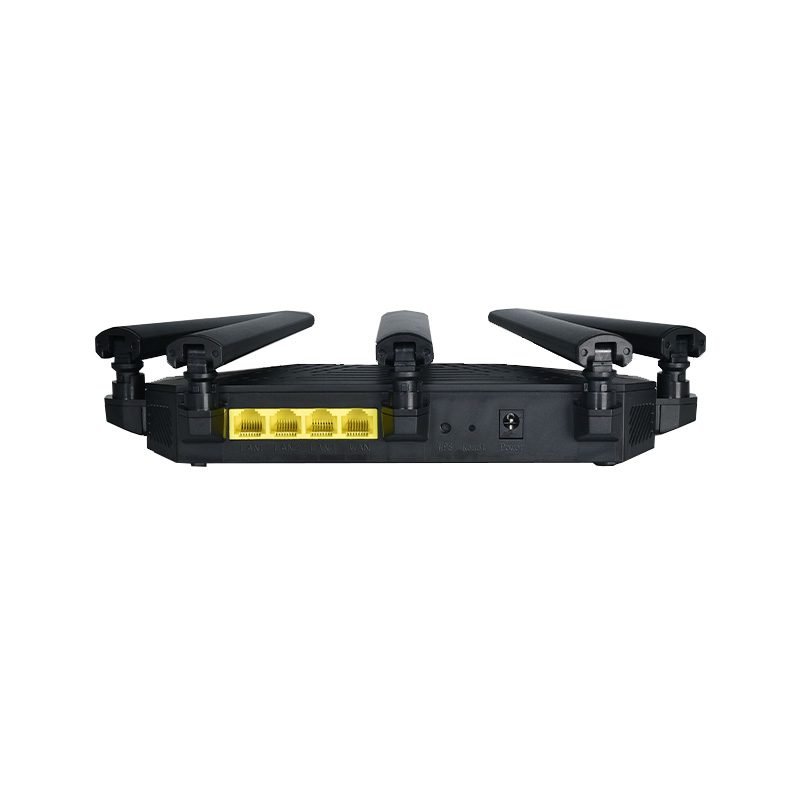

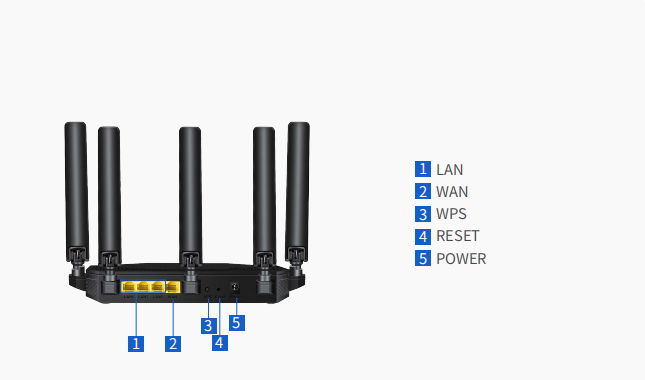

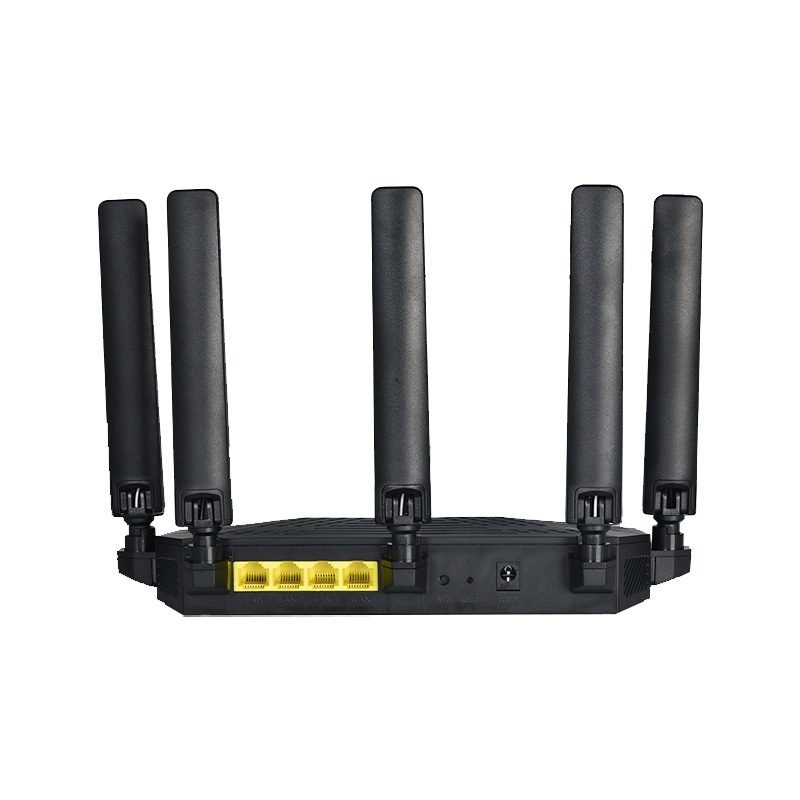

| External Interface | 1*WAN 10/100/1000Mbps 3*LAN 10/100/1000Mbps 1*DC |
| Buttons | 1*WPS 1*Reset 1*Power |

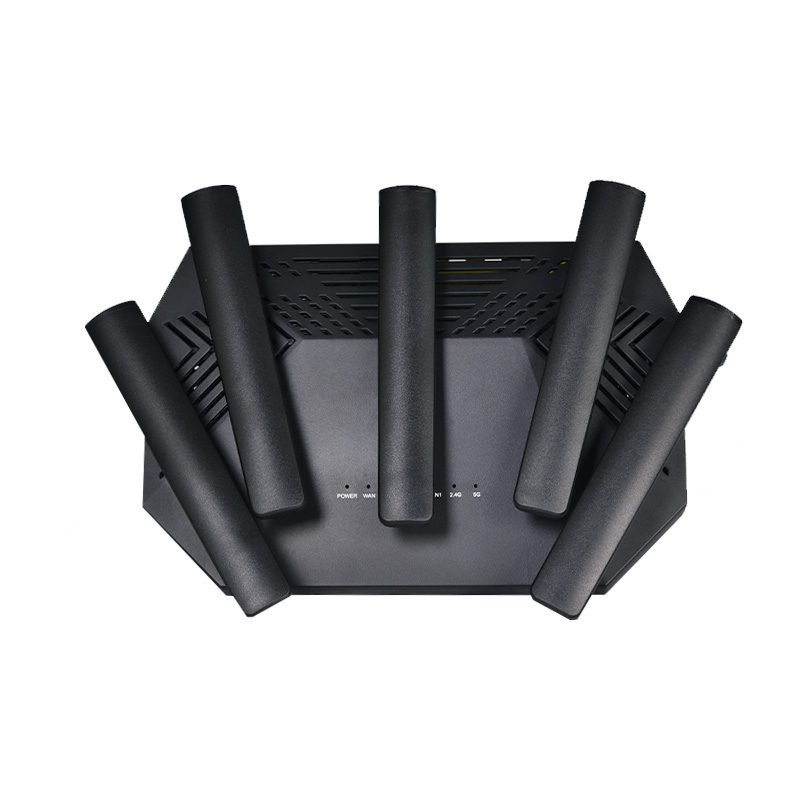

| Indicator Lights | Power / WAN / LAN1 / LAN2 / LAN3 / 2.4G / 5G |
| Power Dissipation | <16W |
| Size | L255*W165*H39 |
| Temperature | Operating Temperature: -10°C ~ +45°C Storage Temperature: -40°C ~ +70°C Storage Humidity: 5% ~ 95% Atmosphere Pressure: 86kPa ~ 106kPa |
| WLAN | Support 802.11 a/b/g/n/ac/ax protocol standard 20/40/80/160 MHz Bandwidth Adaptation of channel MSSID + Guest network WPS: PBC/PIN WPA/WPA2/WPA3 |
| Network protocols and features | Connection mode: PPPoE/DHCP/Static IP IPv4, IPv6, IPv4/IPv6 DHCP v4/v6 Static routes (v4/v6), RIP NAT/ALG/DMZ/Virtual server ARP/ICMP/DNS Proxy NTP VLAN Easymesh |
| Management Function | Web UI TR069 Online and local software upgrades Fault diagnosis |
| Next Generation Firewall | Built-in firewall DoS, ARP Attack/Port scanning MAC/Port filtering |
| QoS | 802.11e WMM Traffic classification Port-Based/VLAN/IP flow control |
