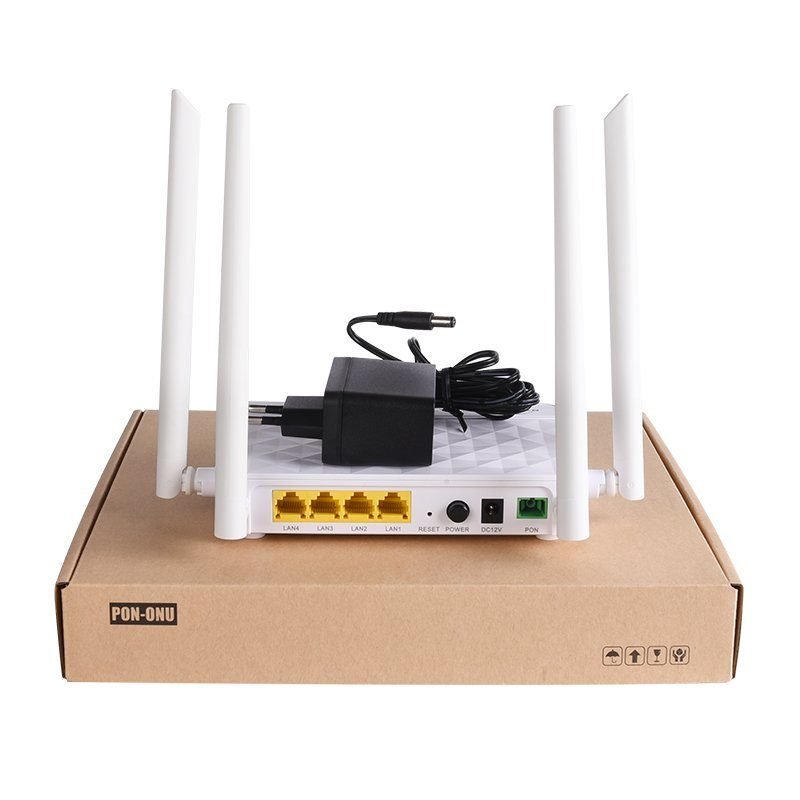

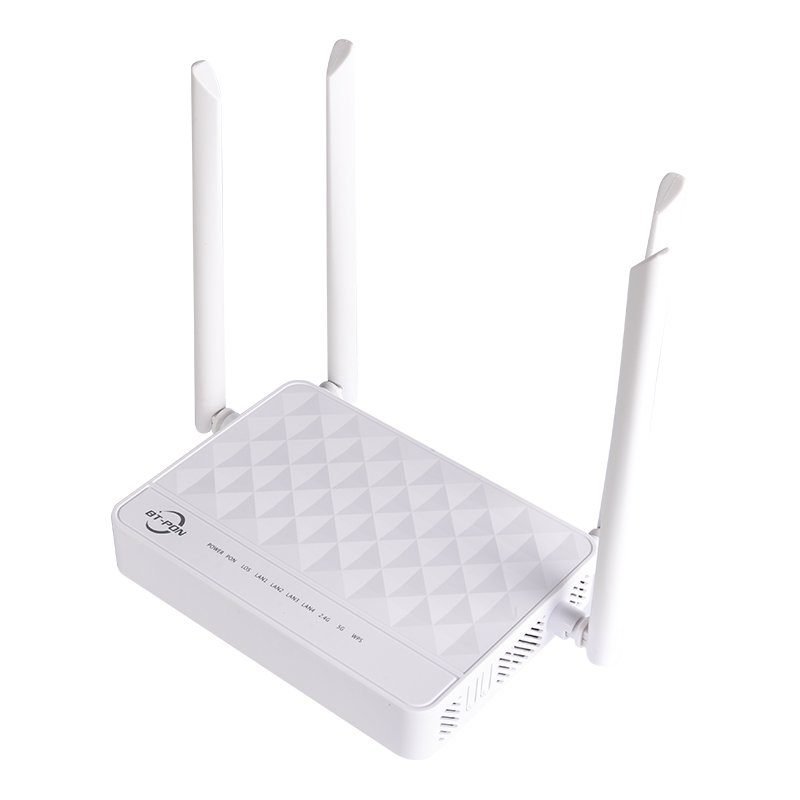

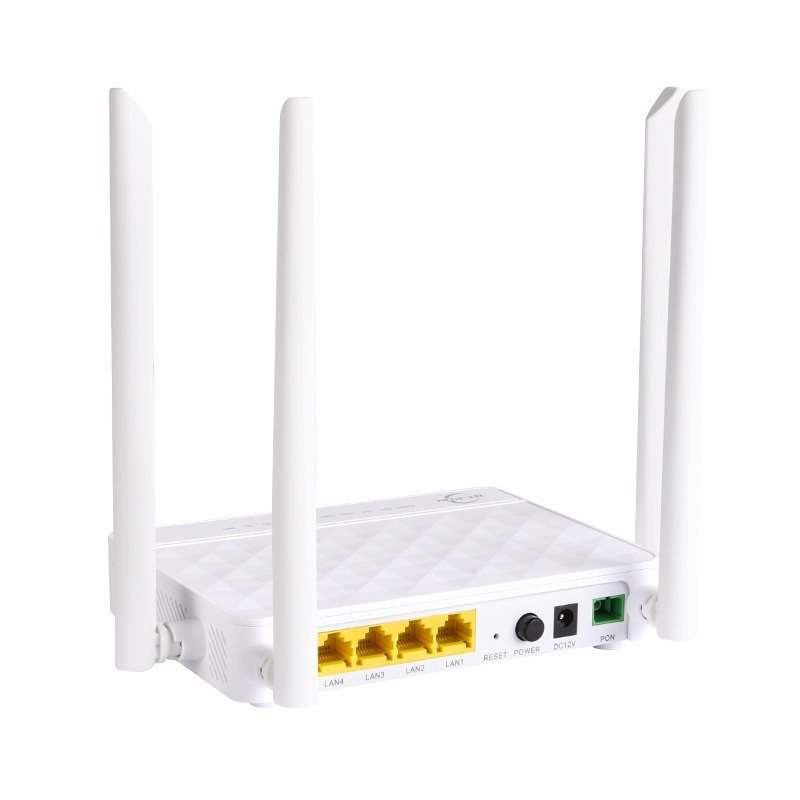

The UN-769XR model ONU is a cutting-edge user terminal device, independently developed by UN-PON, designed to meet the evolving demands of the modern telecommunications industry. This unit is equipped with a dual-layer switching and three-layer routing capability, ensuring seamless data management and transmission. Making it an ideal choice for various operators looking to implement diverse data services within their FTTH networks.
The UN-769XR is a versatile XPON product, capable of adapting to both EPON and GPON networks without the need for equipment or firmware replacement. This adaptability and flexibility make it a robust and future-proof solution for operators seeking to enhance their FTTH offerings.
| Hardware Specifications | |
|---|---|
| Item | Specification |
| Size（L*W*H） | 160*115*28mm |
| Optical signal access | 1*GPON/EPON |
| User interface | 4GE+2.4G/5.8G WLAN+1USB |
| Indicator light | POWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、USB、2.4G、5G、WPS |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 300g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | SC/UPC |
| Working wavelength | PON：up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power value | Receiver sensitivity：-27dBm |
| Transmission distance | 0～20km |
| Transmission rate | GPON: Up 1.244Gbps；down 2.488Gbps EPON: Up 1.244Gbps；down 1.244Gbps |
| Ethernet Interface | |
| Interface type | 4*RJ45 |
| Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n/AC |
| Antenna pattern | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz/80MHz |
| Interface rate | 2.4G WLAN：Maximum rate 300Mbps 5.8G WLAN：Maximum rate 866Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
