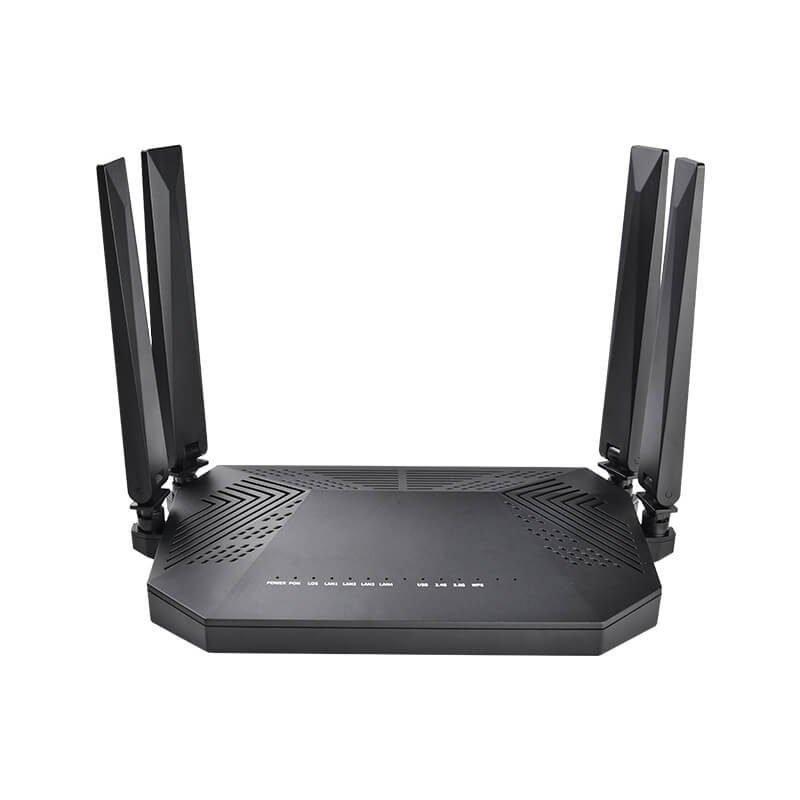

UN-TG733AX WIFI6 AX3000 2.5GE XGPON ONU

The UN-TG733AX is a cutting-edge XGPON ONU (Optical Network Unit) designed for high-performance and energy-efficient FTTH (Fiber to the Home) networking solutions. This compact and user-friendly device integrates a two-layer switching function and three-layer routing function, making it an ideal choice for various data services in FTTH scenarios across different operator networks.

Key Features:

• Wireless Capability: The BT-TG733AX supports IEEE 802.11 b/g/n/ac/ax, offering dual-band Wi-Fi with superior performance in Wireless 11n and 11ac/ax transmission. It is equipped with an external 2x2T2R antenna, providing a robust wireless connection with a maximum bandwidth of 3000Mbps.
• Interface Flexibility: Boasting a 1×2.5GE port and 3xGE ports, along with 2.4G/5.8G Wi-Fi 6 AX3000, the device ensures seamless connectivity for a variety of network configurations.
• Compatibility: It is compatible with 95% of third-party OLTs, including those from leading manufacturers such as Huawei, ZTE, and Fiberhome.
• Standard Compliance: The device adheres to IEEE 802.3ah & ITU-T G.987.x standards, integrating OMCI and TR-069 for remote configuration and maintenance.
• Networking Functions: As a Layer 3 Home Gateway/CPE, it supports Hardware NAT, Multiple WAN, Route/Bridge mode, and other advanced networking features. It also includes Layer 2 Switching with support for 802.1Q VLAN, 802.1P QOS, Bandwidth Control, and Spanning Tree.
• Security and Multicast Support: The BT-TG733AX supports firewall settings, IGMP multicast features, and various filtering options based on URL, MAC, IP, and address frame.
• QoS and Performance: It offers QoS support with PQ, WRR, and CAR queue scheduling, ensuring optimal network performance.
• Environmental Resilience: The device operates within a wide range of temperatures (-10°C to +45°C) and humidity levels (5% to 95% non-condensing), making it suitable for various environments.
• Power Efficiency: With a power consumption of less than 10W and a compact size of 264x170x55mm, the BT-TG733AX is both energy-efficient and space-saving.
