T5351H72 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.T5351H72 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Wireless
| Product Specifications | |
|---|---|
| Hardware Specifications | |
| Size | 255*165*39mm |
| Optical signal access | 1*GPON/EPON |

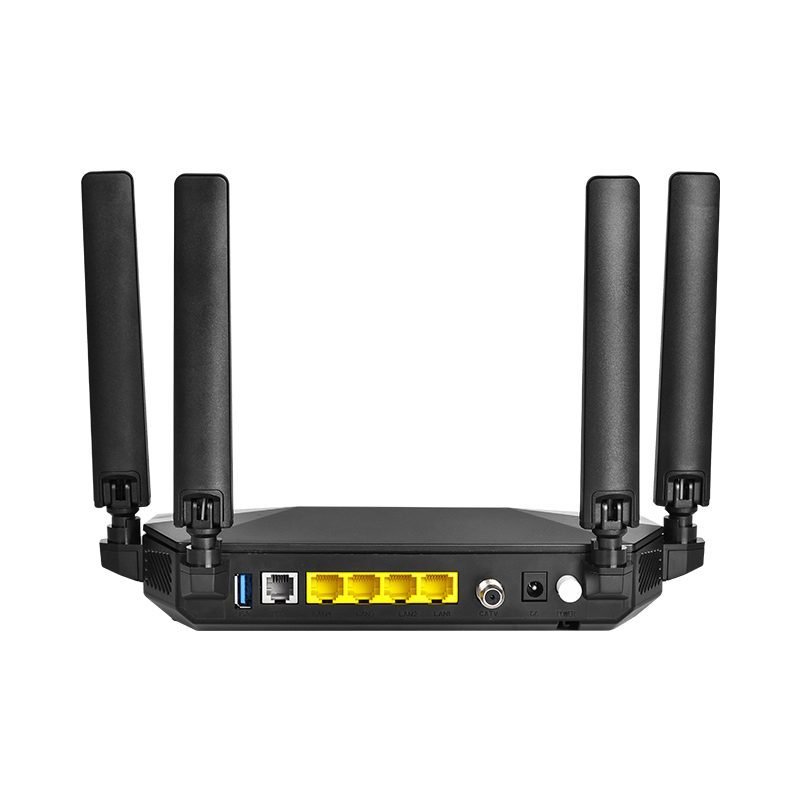

| User interface | 4GE+1TEL+WiFi6 AX3000 +CATV+USB3.0 |

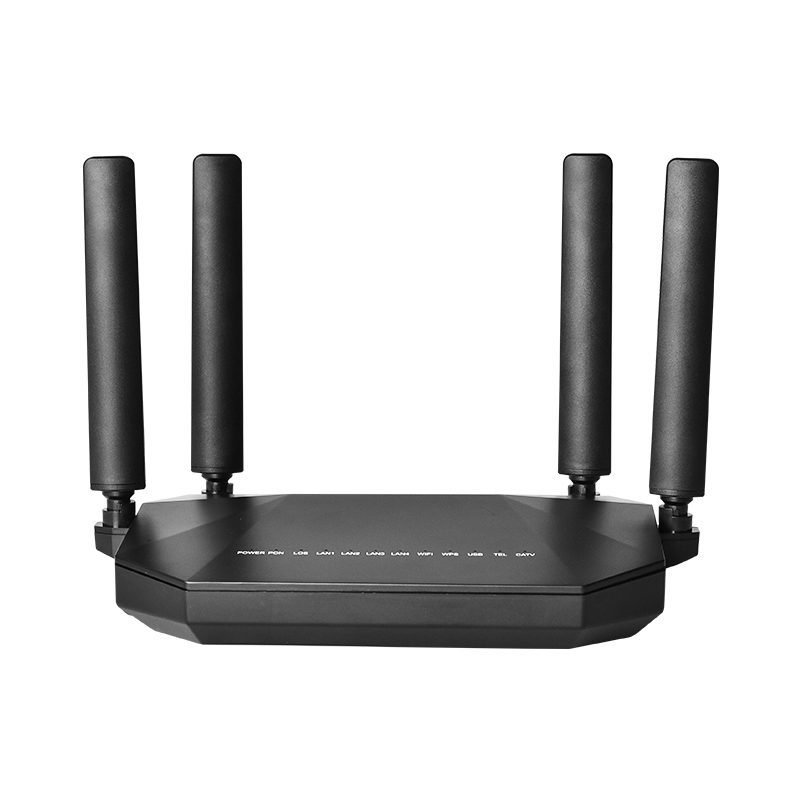

| Indicator light | Power/LOS/PON/LAN1/LAN2/LAN3/LAN4/2.4G/5G/WPS/CATV/TEL |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 350g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，1.5A |
| Power consumption | <16w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | Class B+ SC/APC |
| Working wavelength | PON: up 1310nm，down 1490nm ,CATV: 1550nm |
| TX Optical power value | 0.5～4dbm |
| RX Optical power sensitivity | -28dBm |
| Transmission distance | 0～20km |
| Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps |
| Ethernet Interface | |
| Interface type | 4*RJ45 |
| Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n/AC/AX |
| Antenna pattern | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz/80MHz/160MHz |
| Interface rate | Maximum rate 3000Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
| POTS interface | |
| Interface type | 1* RJ11 |
| Voice agreement | SIP |
| Codecs | G.711/G.723/G.726/G.729 |
| Integrated circuit protocol | Gr-909 protocol is applicab |
| CATV Interface | |
| Optical receiving wavelength | 1550±10nm |
| Optical reflection loss | External 2*2T2R External antenna |
| RF, WDM, optical power | +2~-15dBm |
| RF frequency range | 47~1000MHz, RF output impedance: 75Ω |
| RF output level | 78dBuV |
| AGC range | 0~-12dBm |
| MER | ≥32dB@-15dBm |
Features
Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Bi-directional FEC
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide Maximum rate 3000Mbps Wireless interface, 2T2R external antenna, support multiple
SSID Settings
Support DDSN, ALG, DMZ and UPNP
Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909
Support CATV interface for Video Service，support to turn off CATV functionality
Highlights
Provide Maximum rate 3000Mbps Wireless interface, 2T2R external antenna, support multiple
SSID Settings
Support DDSN, ALG, DMZ and UPNP
Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909
Support CATV interface for Video Service，support to turn off CATV functionality
