High-power multi-port output fiber optical amplifier with a gain spectrum bandwidth of 1535~1565nm. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities. Can build CATV large Medium-sized optical fiber transmission network .
1550nm fiber amplifier EDFA are designed for using in CATV、FTTX and HFC application. It is optimized for 1550nm wavelength with 1U 19 inch rack housing. The product is flexible enough to perform all the requirements of CATV、FTTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget.
Also provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the LCD front panel display /Web or remotely via Ethernet based-SNMP NMS.It is an important equipment for building CATV large Medium-sized optical fiber transmission network.

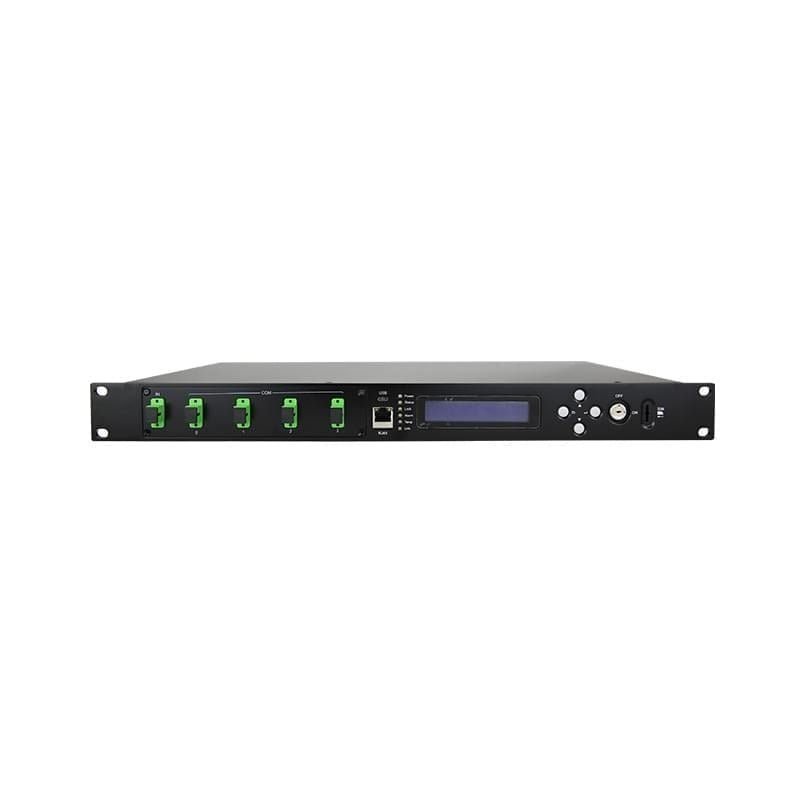

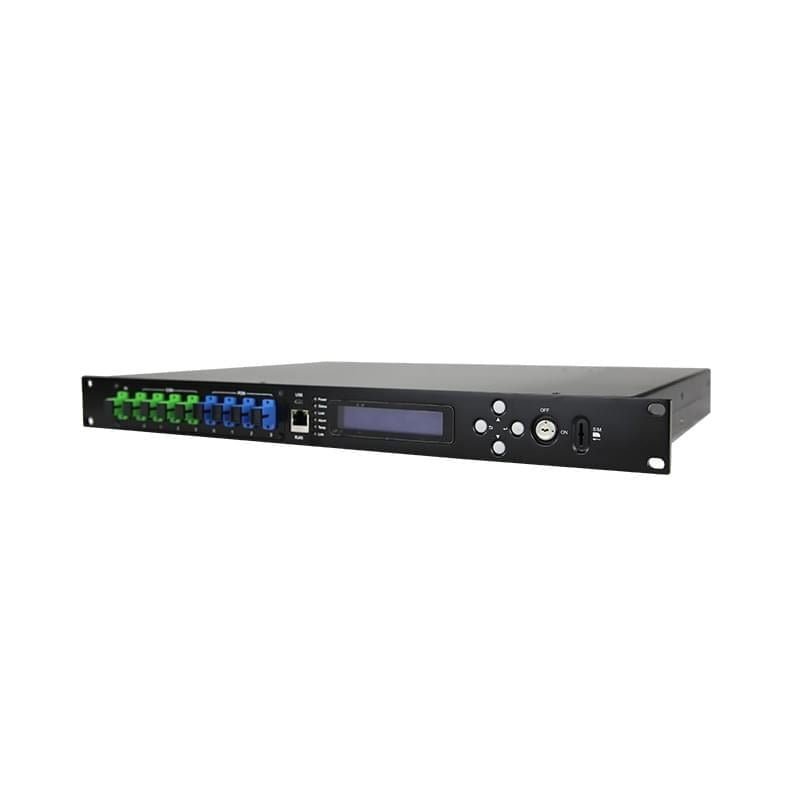

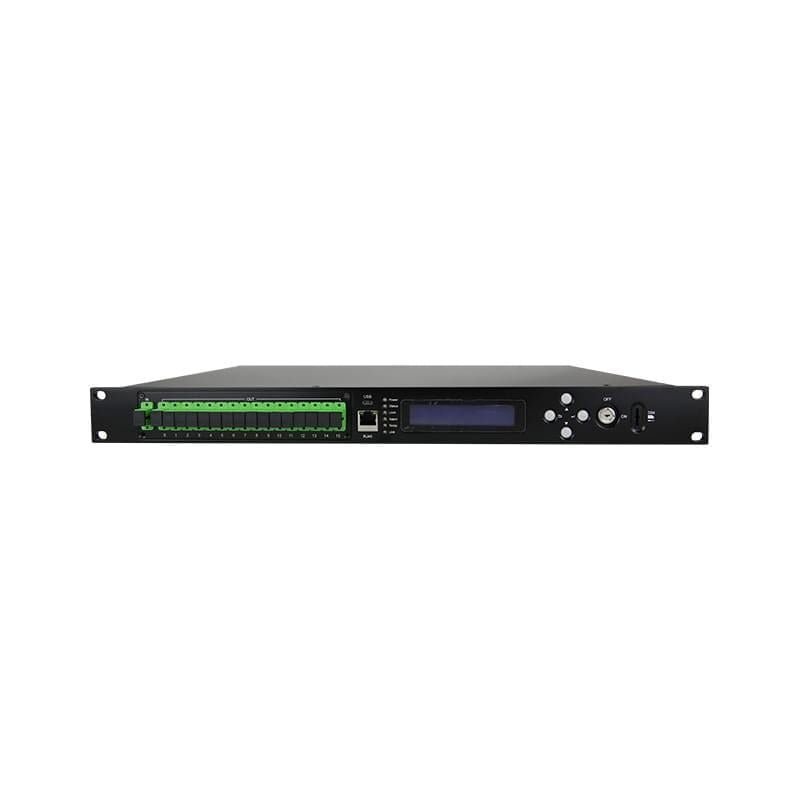

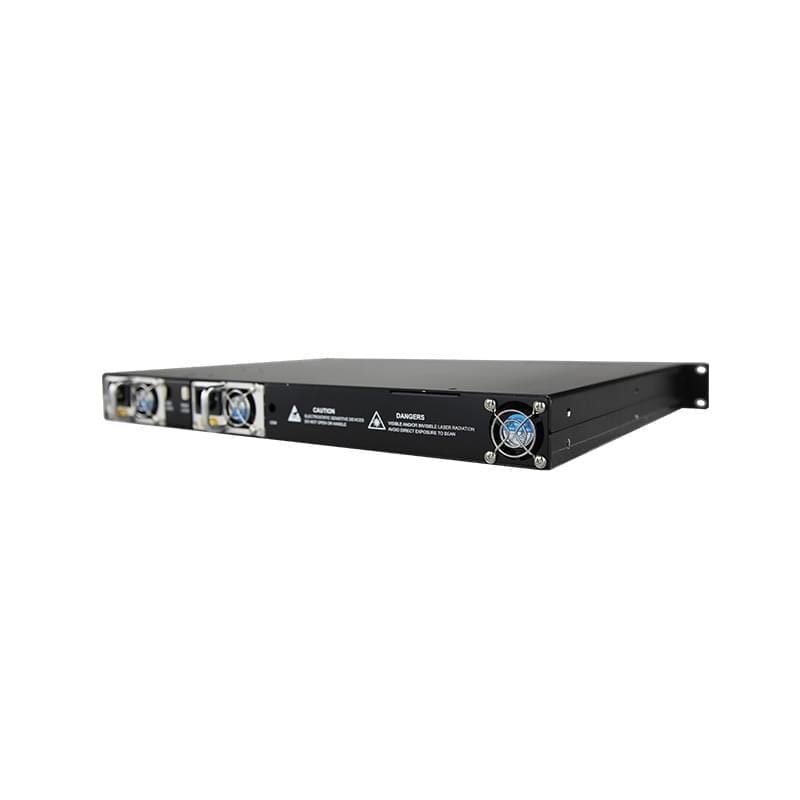

1550NM CATV EDFA 4 Ports With WDM/Optical Fiber Amplifier
| Technical Parameters | WS-56EYA1U |
|---|---|
| Wavelength | 1535-1565nm |
| Input power range | -5dBm~+10dBm(normal input -2dBm~+5dBm) |
| Output optical power | 26dBm~37dBm |
| Optical power stability | ±0.1dBm |
| Noise figure | ≤ 5.0dB(Pin=0dB) |
| Input return loss | ≥ 45dB |
| Output return loss | ≥ 45dB |
| C/N | ≥ 50dB |
| C/CTB | ≥ 63dB |
| C/CSO | ≥ 63dB |
| Optical connector | SC/APC; SC/PC; LC/APC; LC/PC |
| Supply voltage | AC220V(160V ~ 265V) / AC110V(90 ~130V) / DC48V(38 ~ 58V) |
| Consumption | ≤ 50w |
| Working temperature | -5℃ ~ +42℃ |
| Storage temperature | -30℃ ~ +70℃ |
| Maximum working relative humidity | Max 95% non-condensing |
| Package size (1pc) | 580(W)*485(L)*110(H)mm |
| Package size (2pcs) | 600(W)*515(L)*250(H)mm |
| Size | 380(W)*482(L)*44(H)mm |
| Weight | 6.5kg/pc |
