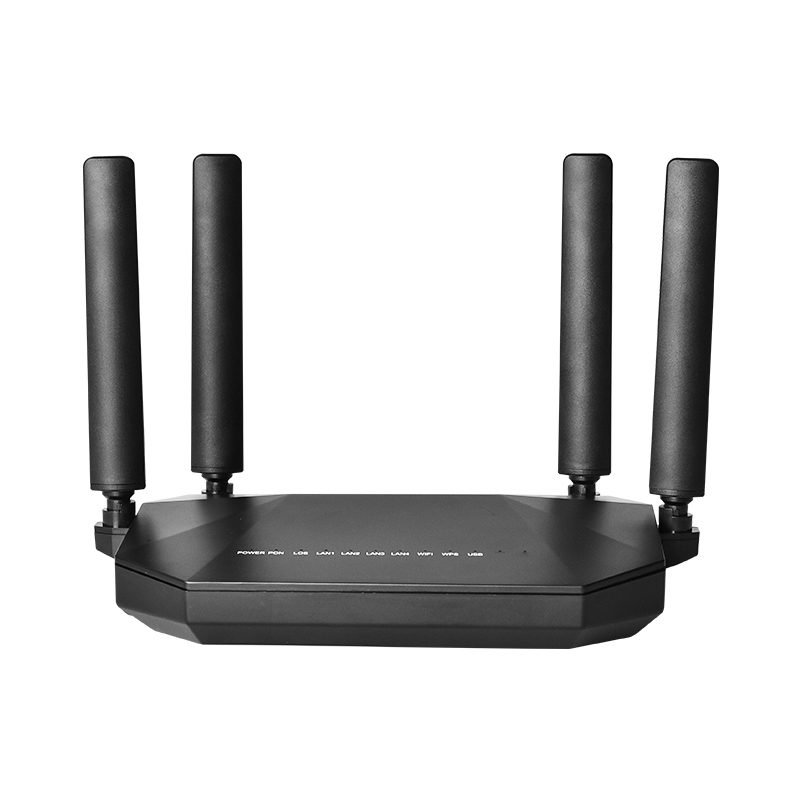

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU

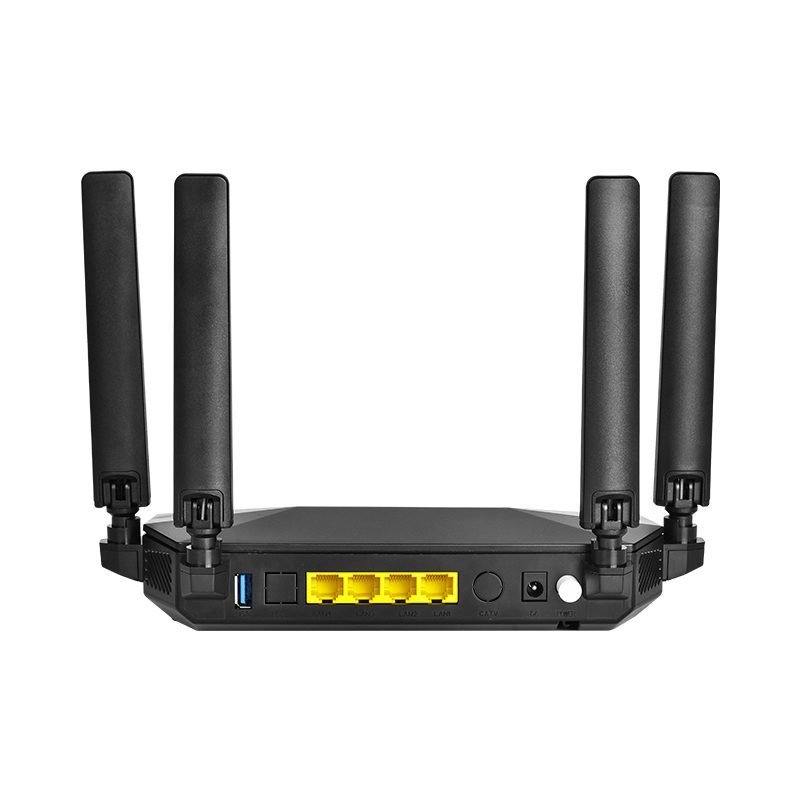

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU - Image 2

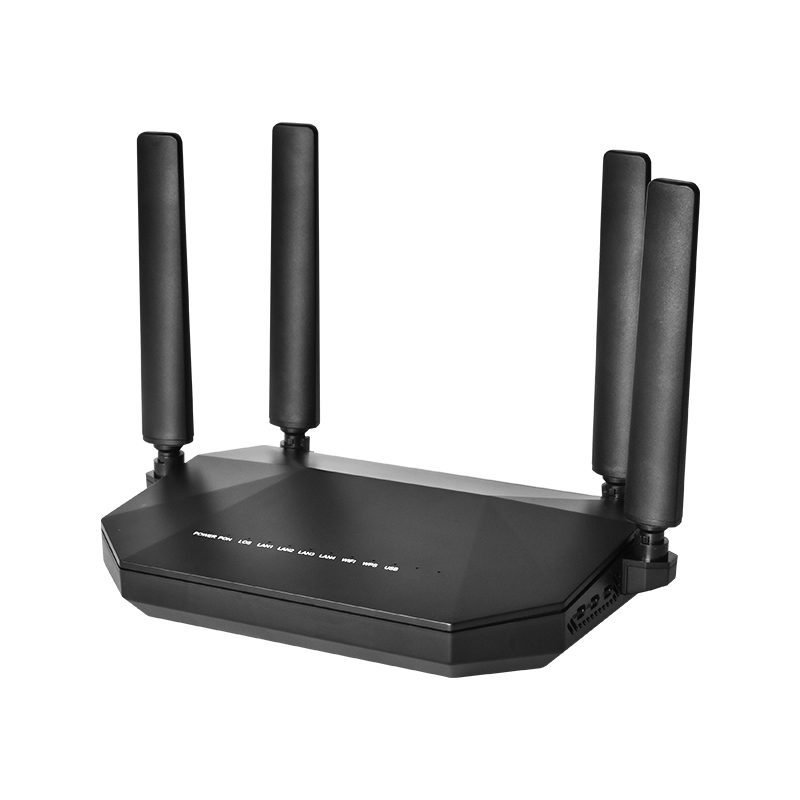

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU - Image 3

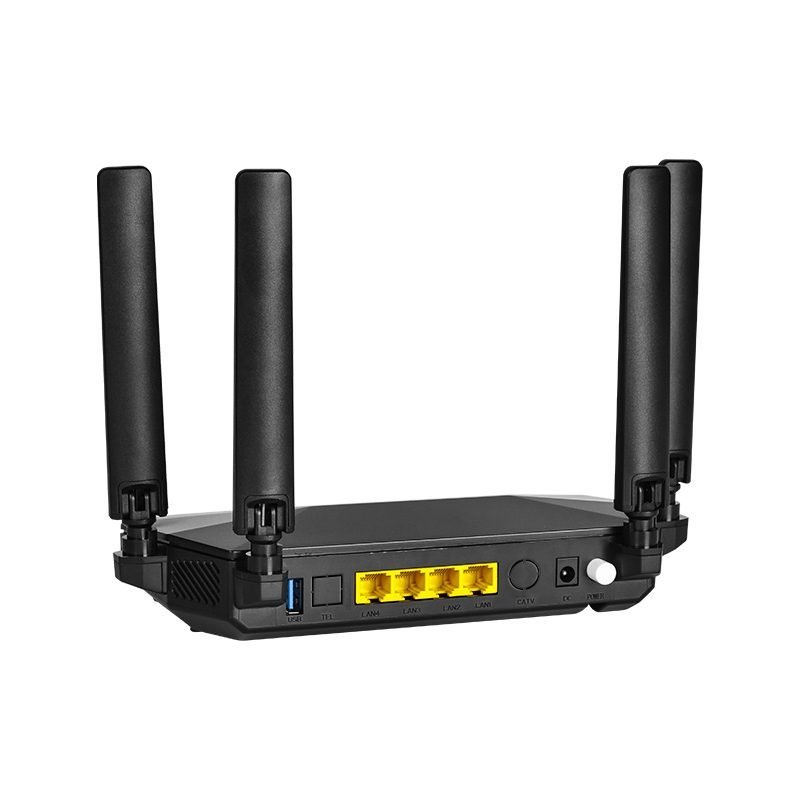

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU - Image 4

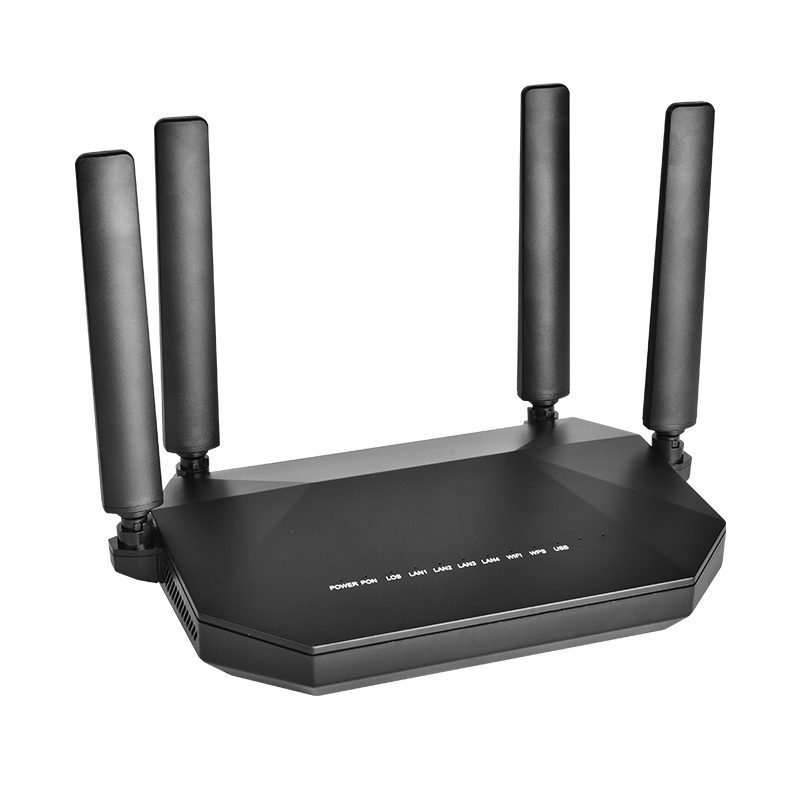

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU - Image 5

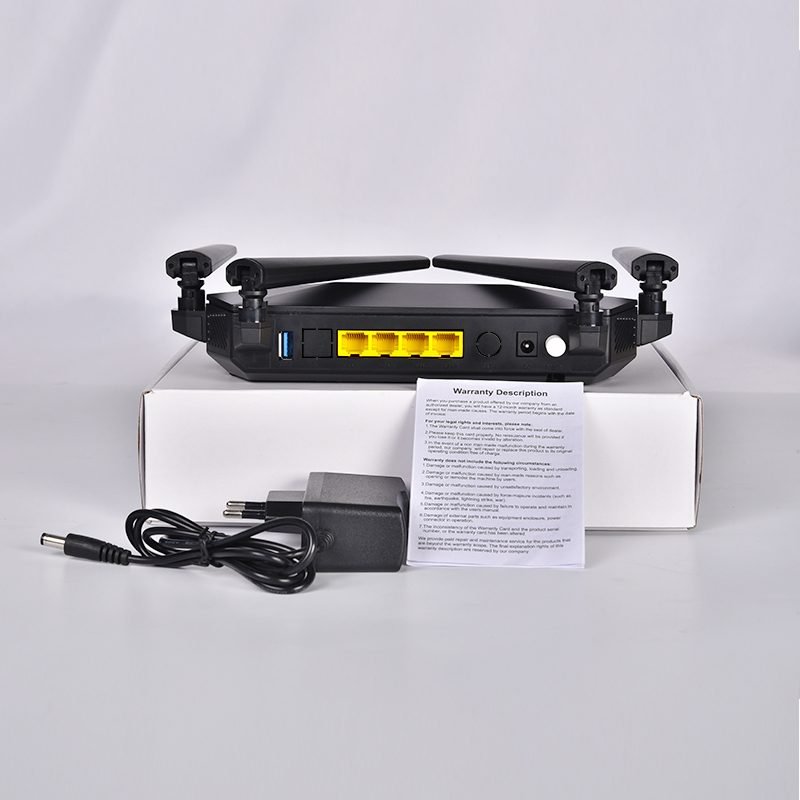

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU - Image 6

T5301H72 XPON 4GE WiFi6 AX3000 USB3.0 XPON ONU

    • High-Speed Connectivity: Supports Gigabit dual-band Wi-Fi6 for fast network speeds.
    • Multi-Gigabit Ports: Equipped with 4 GE ports for versatile connectivity options.
    • Enhanced Security: Includes a USB 3.0 port for convenient storage and expansion.
    • Compact Design: Measures 255x165x39mm, perfect for small spaces.
    • Robust Construction: Built for reliable performance in temperatures ranging from -10°C to +45°C.
💬 WhatsApp 📞 Contact Us

The T5301H72 is a user terminal device independently developed based on passive optical networks.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.T5301H72 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

Product Specifications
Hardware Specifications
Size255*165*39mm
Optical signal access1*GPON/EPON
User interface4GE+WiFi6 AX3000+USB3.0
Indicator lightPower/LOS/PON/LAN1/LAN2/LAN3/LAN4/2.4G/5G/WPS
ButtonPower switch Button, Reset Button, WLAN Button, WPS Button
Weight350g
Power adapter input100V～240V AC，50Hz～60Hz
PowerSupply requirement12V DC，1.5A
Power consumption<16w
Working temperature-10°C ~ +45°C
Environment humidity5% ~ 95% (Non-condensing)
PON Interface
Module typeClass B+ SC/APC
Working wavelengthPON: up 1310nm，down 1490nm ,CATV: 1550nm
TX Optical power value0.5～4dbm
RX Optical power sensitivity-28dBm
Transmission distance0～20km
Transmission rateGPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
Ethernet Interface
Interface type4*RJ45
Interface parameters4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working modeIEEE 802.11 b/g/n/AC/AX
Antenna patternExternal 2*2T2R External antenna
Antenna gain5dBi
Wireless bandwidthSupport 20MHz/40MHz/80MHz/160MHz
Interface rateMaximum rate 3000Mbps
SSIDUp to 4 SSID broadcasts are supported

Features

Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Bi-directional FEC
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide Maximum rate 3000Mbps Wireless interface, 2T2R external antenna, support multiple SSID Settings
Support DDSN, ALG, DMZ and UPNP

Highlights

Dual band Wi-Fi, Superior performance of Wireless 11N and 11AX Transmission
Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome and so on)
Support EPON/GPON mode and switch mode automatically
Support Route PPPoE/DHCP/Static IP and Bridge mode
Support ONU auto-discovery/Link detection/remote upgrade of software
Support IPv4/IPv6 dual mode
Support Firewall function and IGMP multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Support EasyMesh
