WIFI6 AX1500 2GE Voice XPON ONT G716AX

2*1GE+TEL+2.4G+5G WIFI6 AX1500 / external antennas)

♦ Extreme wireless speed ofup to 1500Mbps
♦ All-in-one Device
♦ Full Gigabit Wired
♦ Supports VoIP Calls
♦ Manage Your Network with Advanced Features

The BT-G716AX supports 1201 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band, is ideal for multi-user household. With ON-G716AX, all of your family memberscan play video games, listen to music, check email, shop, stream movies, andmore-all simultaneously and without lag or buffering. BT-G716AX is an one-stop solution that make everything of your home connected. It supports Internet/IPTV/NolP and other services,and features large transmission capacity,fast speeds and high reliability.  Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission dis- tance up to 20km.Higher bandwidth support makes it possible to integrate and provide more additional services with the same device.

BT-G716AX support the ONT Management and Control Interface (OMCl),making it easy to configure,activate and manage remotely from an Optical Line Terminal(OLT).

Size

170x105x31 mm

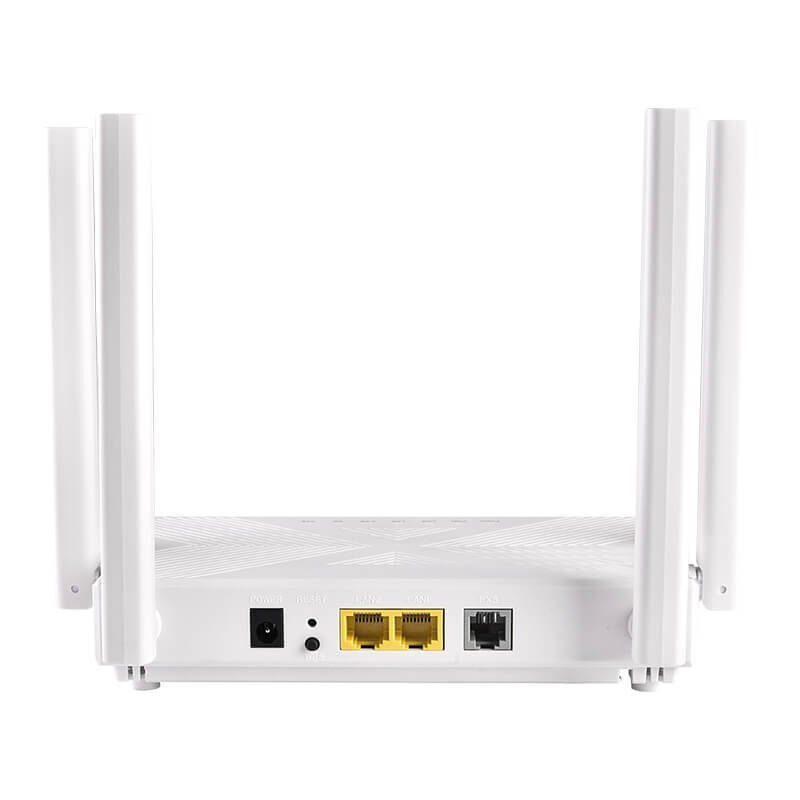

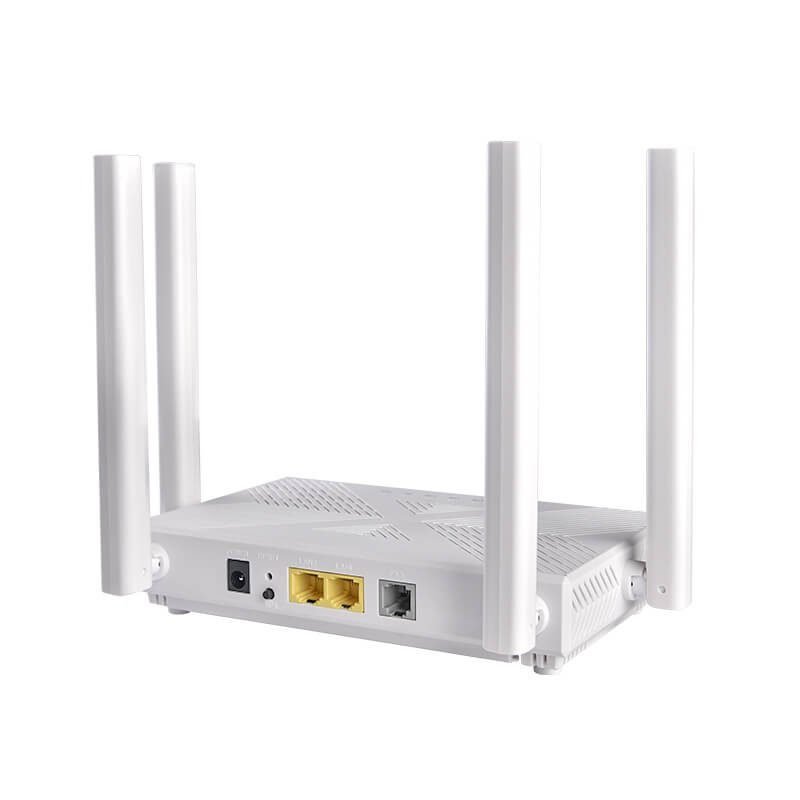

Interfaces

1xSC/APC XPON Port
2×10/100/1000Mbps LAN Ports
1xFXS Port

Buttons

WPS/WiFi Button, Reset Button

Power Supply

DC 12V 1A

Antenna

4x5dBi Antennas

GPON Standards

ITU-T G.984.x

Distance

20Km Max

Data Rates

Upstream: 1.25Gbps,Downstream:2.5Gbps

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g2.4 GHz

Signal Rate

5 GHz:1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

Operation Frequency

2.4GHz & 5GHz

Wireless Security

WEP/WPA2/WPA2 Mix/WPA3/WPA3 Transition

VOlP Standards

SIP(RFC3261), ITU-T G.729/G.722/G.711a/G.711

Software Features

Software Features

WAN Type

DynamicIP/Static IP/PPPoE

DHCP

Server,Client,DHCP Client List,Address Reservation

Quality of Service

WMM,Bandwidth Control

Port Forwarding

Virtual Server,Port Triggering,UPnP,DMZ

VLAN

802.1Q tag VLAN,VLAN transparent mode/VLAN translation
mode/VLAN trunk mode

Access Control

Parental Control,Local Management Control,Host List,Access Schedule,Rule Management

Firewall Security

DoS,SPI Firewall
IP Address Filter/MACAddress Filter/Domain Filter
IP and MAC Address Binding

Management

Access Control
Local Management
Remote Management

VOIP Features

One RJ-11 FXS ports for connecting to analog telephones
Call forwarding,Call waiting,Call block,3-way conference call,etc.

Internet Protocol

IPv4,IPv6

Environment

Environment

Operating Temperature

0℃~40℃(32°F~104°F)

Storage Temperature

-40℃~70℃(-40°F~158°F)

Relative Humidity

10%~90%,non-condensing

10%~90%,non-condensing

5%~95%,non-condensing

Package Contents

1xXPON ONU
Installation Guide
1xPower Adapter
1x Ethernet Cable
