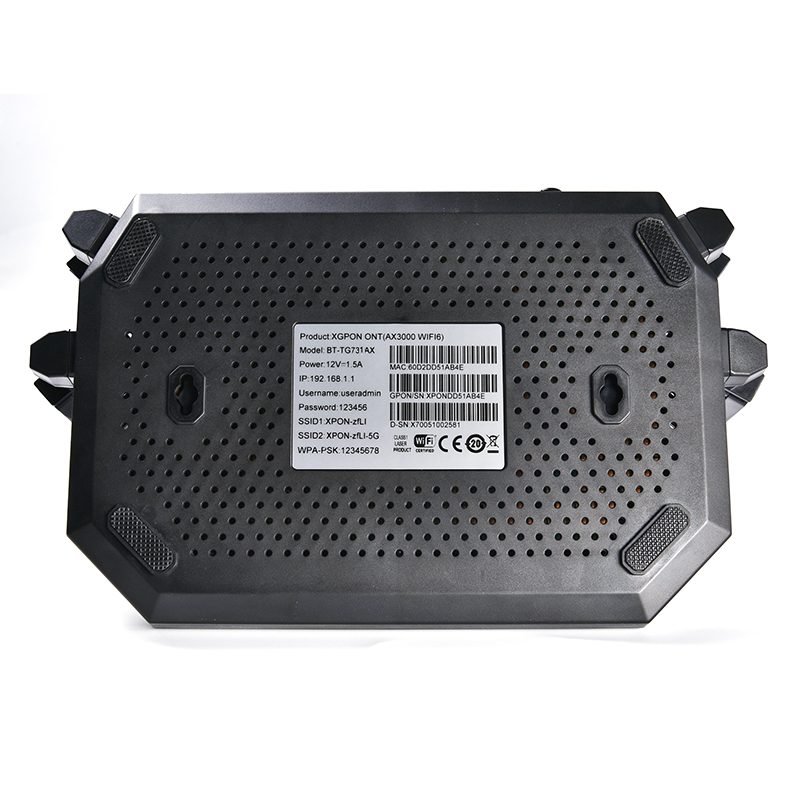

The TG731AX ONU is a user terminal device independently developed by our company based on our industry background. This device integrates Layer 2 switching and Layer 3 routing functions, featuring a compact structure and small size. It is a high-performance, low-power FTTH optical network unit, ideally suited for various data service applications in FTTH network scenarios for different operators. The TG731AX is an XGPON product, allowing for compatibility with XGPON networks without requiring changes to equipment or firmware.
| Product Specifications | |
|---|---|
| Hardware Specifications | |
| Optical signal access | 264*170*55mm |
| Optical signal access | 1*XGPON |

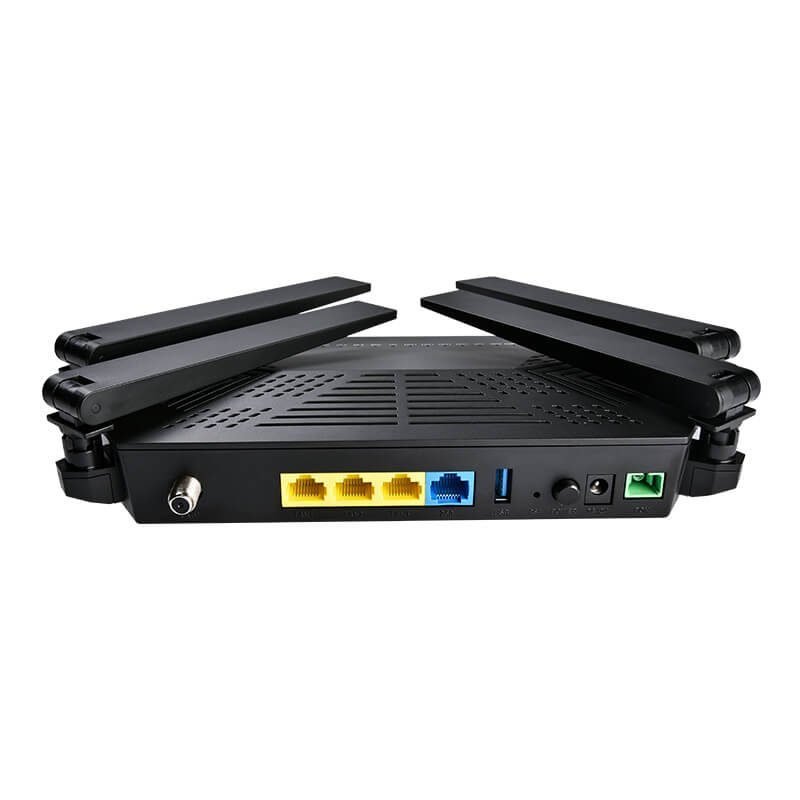

| User interface | 1 *2.5GE+3*GE+1* VOIP+2.4G/5.8G WIFI 6 AX3000 |
| Indicator light | POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL/USB 2.4G/5G/WPS/ |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 300g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | Class B+ SC/APC |
| Working wavelength | PON: up 1270nm，down 1577nm ,CATV: 1550nm |
| TX Optical power value | 2-7dBm |
| RX Optical power sensitivity | -30dBm |
| Transmission distance | 0～20km |
| Transmission rate | Up 2.5Gbps； down 10Gbps |
| Ethernet Interface | |
| Interface type | 4*RJ45 |
| Interface parameters | 1*10/100/1000/2.5G BASE-T Ethernet adaptive 3*10/100/1000Mbps auto adaptive Ethernet interfaces |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n/AC/AX |
| Antenna pattern | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz/80MHz/160MHz |
| Interface rate | 2.4G: IEEE 802.11ax: 2×2, up to 574Mbps 5G: IEEE 802.11ax: 3×3, up to 2,402Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
| CATV Interface | |
| Optical receiving wavelength | 1550±10nm |
| Optical reflection loss | ≥45dBm |
| RF, WDM, optical power | +2~-15dBm |
| RF frequency range | 47~1000MHz, RF output impedance: 75Ω |
| RF output level | 78dBuV |
| AGC range | 0~-12dBm |
| MER | ≥32dB@-15dBm |
