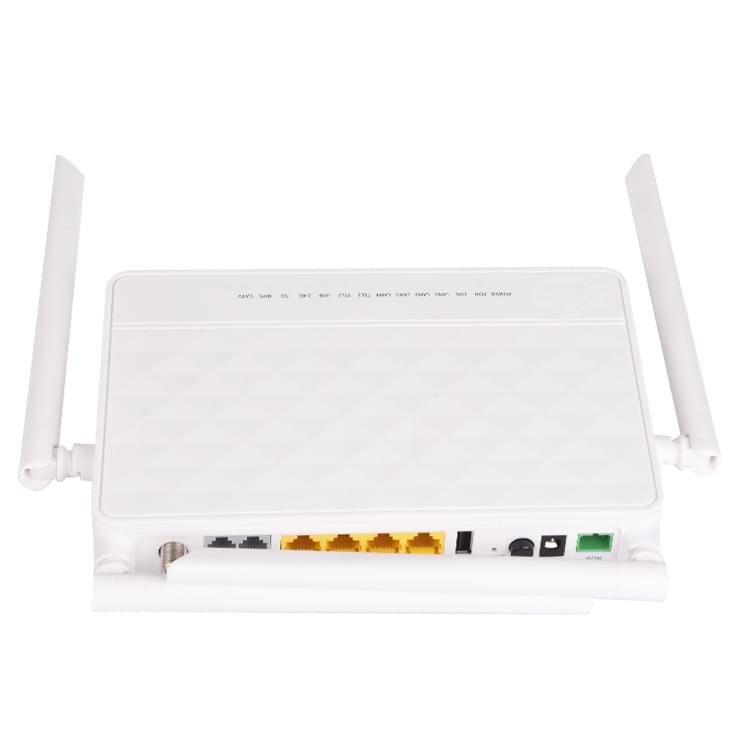

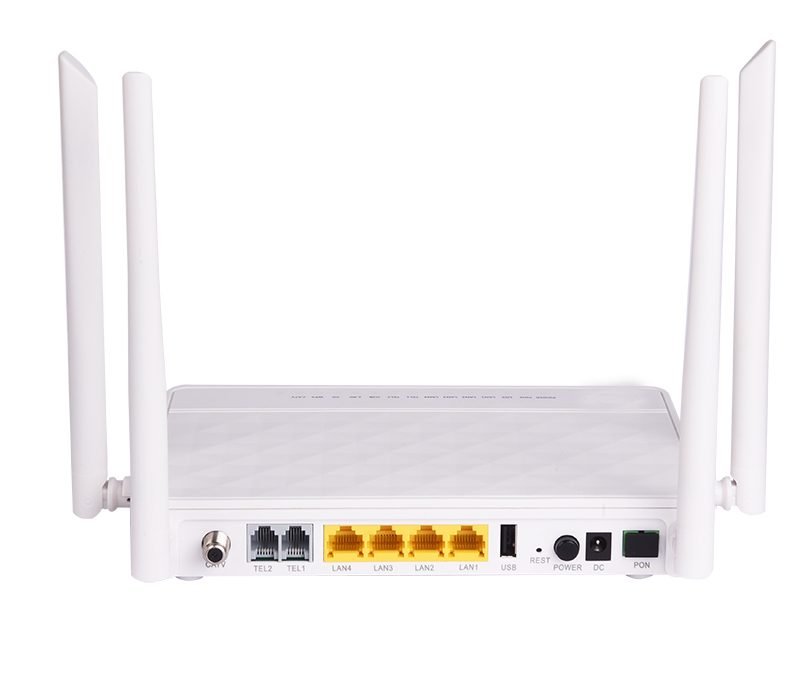

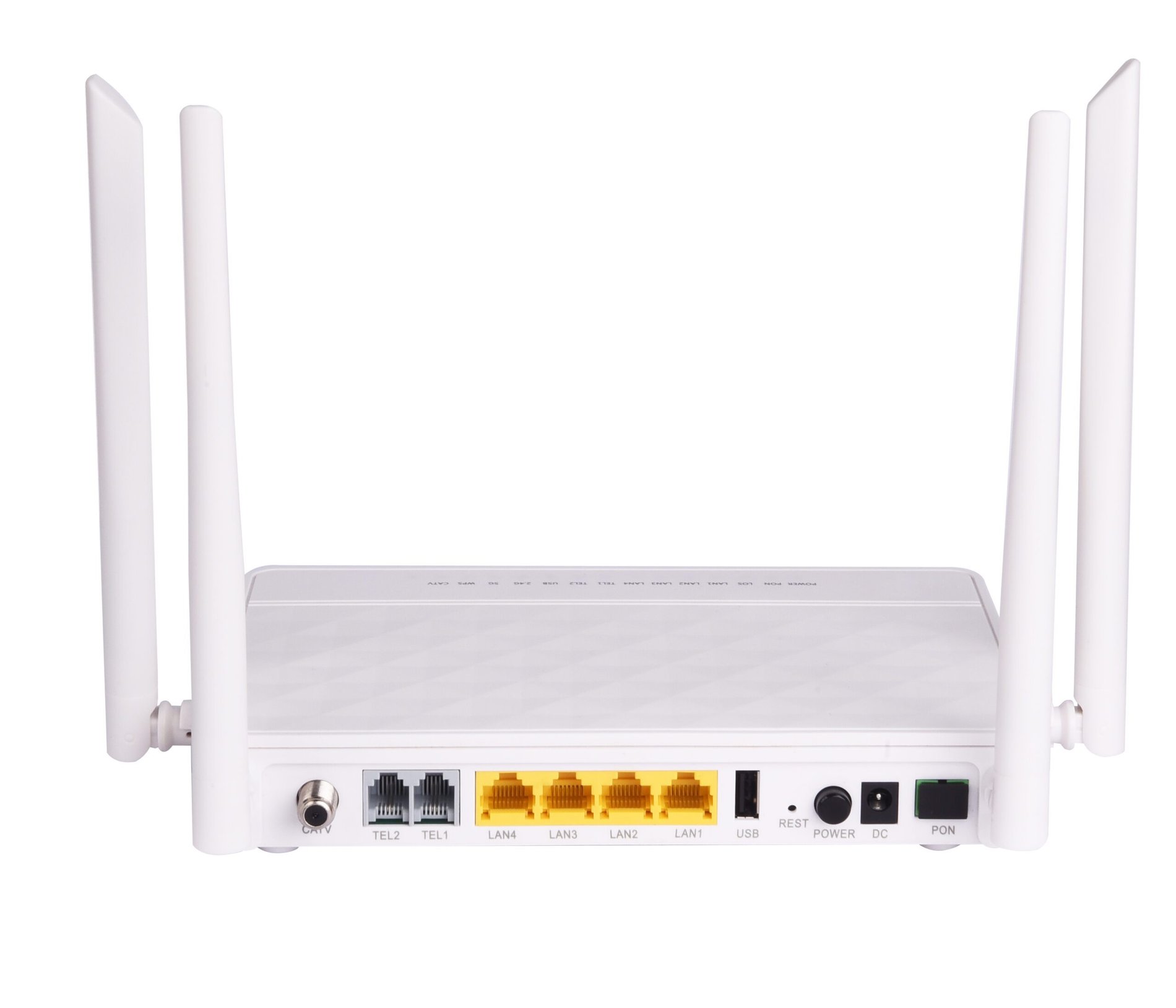

UN-711XR 4GE 2VoIP 5G CATV Dual Band ONU

4GE+2.4G+5G++2VOIP+CATV(dual band / external antennas）

♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface，,2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
♦ Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909
♦ upport CATV interface for Video Service，support to turn off CATV functionality

UN-711XR is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Hardware Specifications
Size（LWH）	205mm (L) 140mm (W) 30mm (H)
Optical signal access	1*GPON/EPON
User interface	4GE+2.4G/5.8G WLAN+1USB+CATV

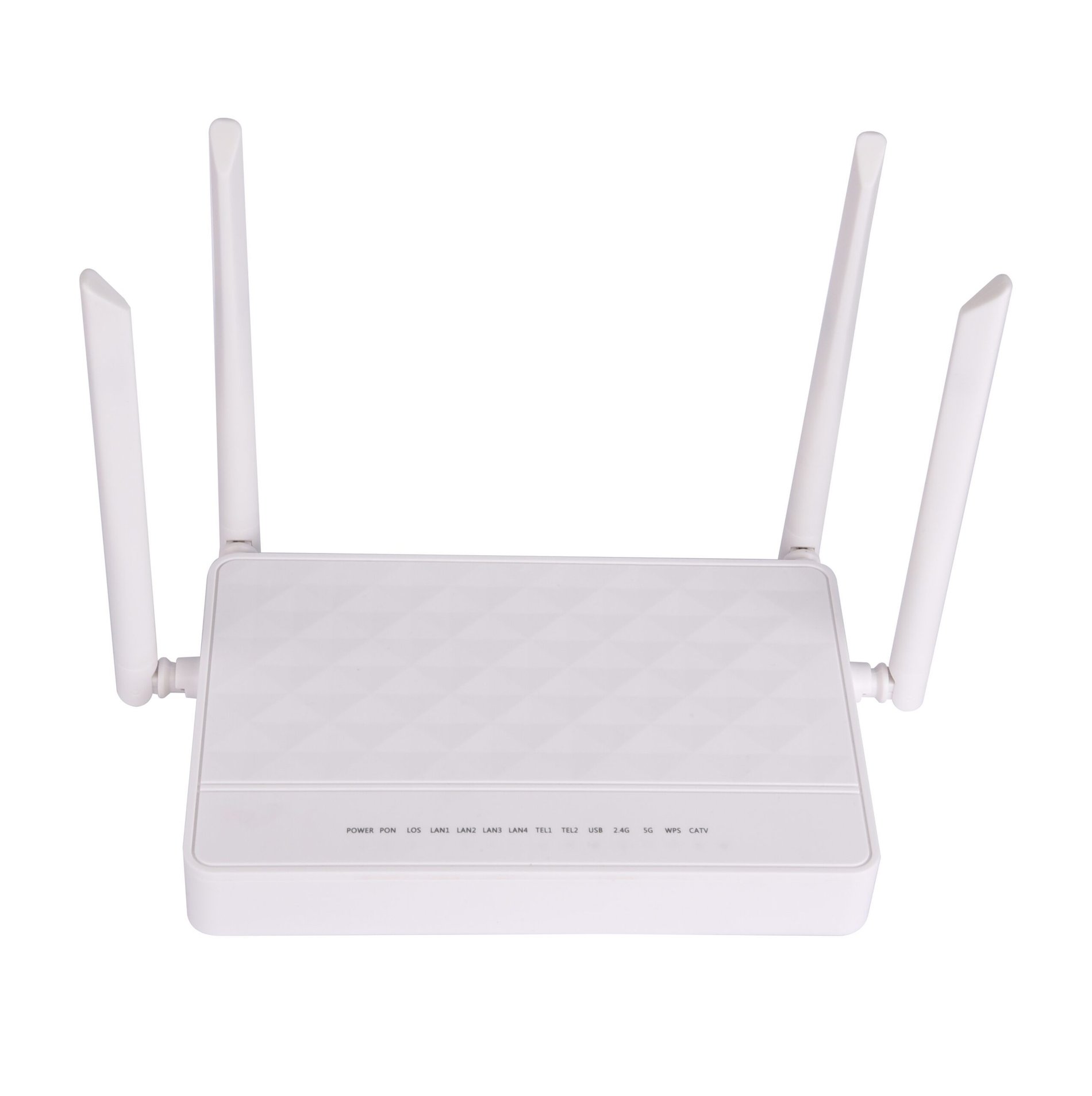

Indicator light	POWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、USB、2.4G、5G、WPS、CATV
Button	Power switch Button, Reset Button, WLAN Button, WPS Button
Weight	300g
Power adapter input	100V～240V AC，50Hz～60Hz
PowerSupply requirement	12V DC，1.5A
Power consumption	<10w
Working temperature	-10°C ~ +45°C
Environment humidity	5% ~ 95% (Non-condensing)
PON Interface
Module type	SC/APC
Working wavelength	PON：up 1310nm，down 1490nm ；CATV：1550nm
TX Optical power value	0.5～4dBm
RX Optical power value	Receiver sensitivity：-27dBm
Transmission distance	0～20km
Transmission rate	GPON: Up 1.244Gbps；down 2.488Gbps EPON: Up 1.244Gbps；down 1.244Gbps
Ethernet Interface
Interface type	4*RJ45
Interface parameters	4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working mode	IEEE 802.11 b/g/n/AC
Antenna pattern	External 2*2T2R External antenna
Antenna gain	5dBi
Wireless bandwidth	Support 20MHz/40MHz/80MHz
Interface rate	2.4G WLAN：Maximum rate 300Mbps 5.8G WLAN：Maximum rate 866Mbps
SSID	Up to 4 SSID broadcasts are supported
CATV Interface
Optical receiving wavelength	1550±10nm
Optical reflection loss	≥45dBm
RF, WDM, optical power	+2~-15dBm
RF frequency range	47~1000MHz, RF output impedance: 75Ω
RF output level	78dBuV
AGC range	0~-12dBm
MER	≥32dB@-15dBm
