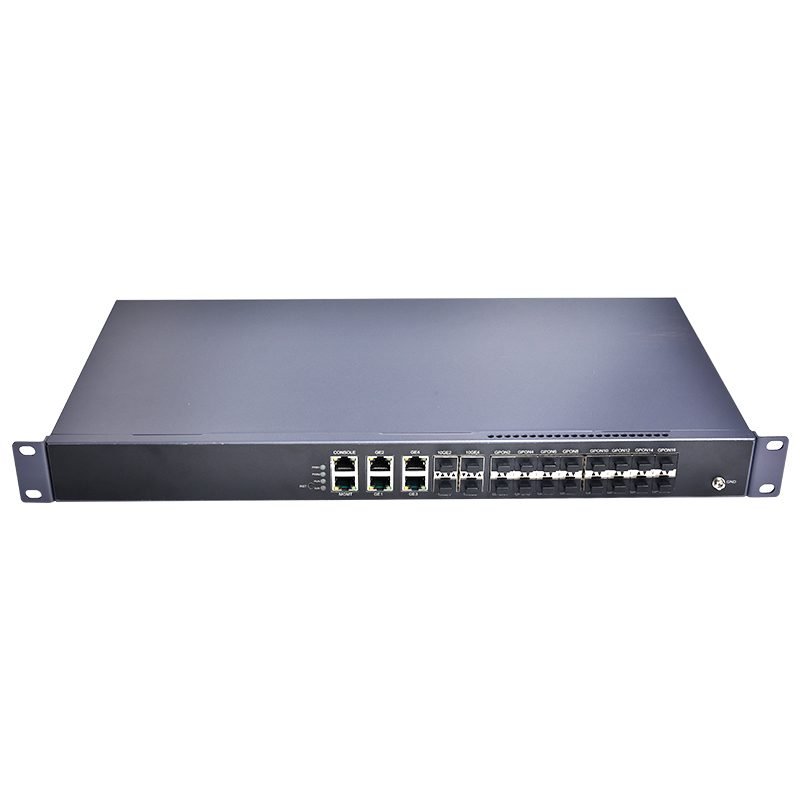

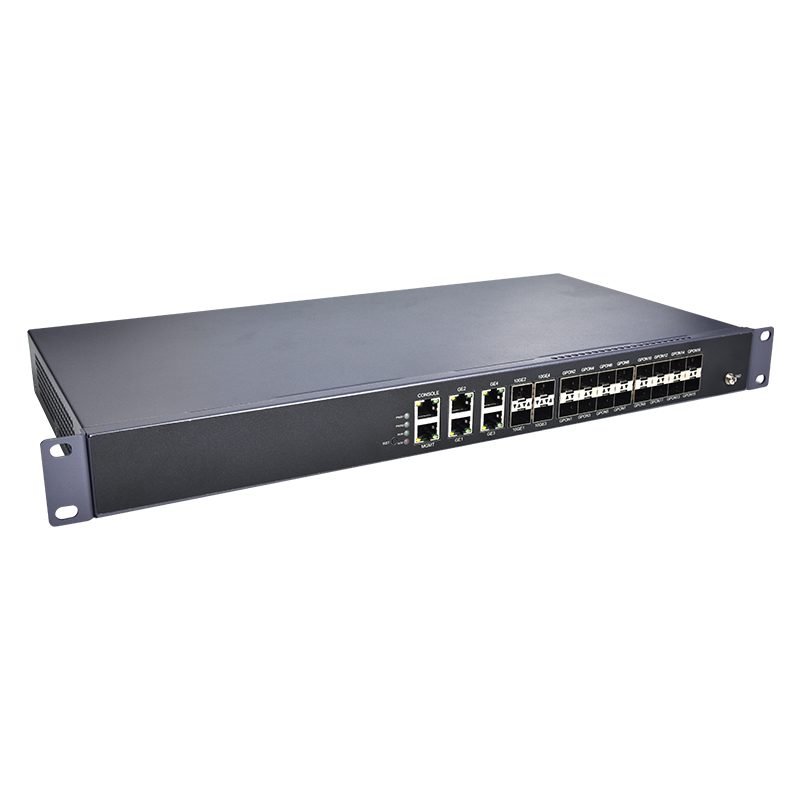

GPON OLT series is a 1U sized, high compact OLT device that includes three product forms: 4 /8 /16 GPON ports. Support FTTx fast access to meet the networking needs of various scenarios such as homes, parks, buildings, and enterprises. Implement one physical point, one optical fiber, and full service network access.
Technical Specifications
| Appearance | GPON OLT PH8116-D |
| (W/H/D) mm | 483×44×220 |
| Operating Environment | Temperature: -10°C to +55°C RH: 10% to 90% |
| Power consumption | <100W |
| Power supply | AC: Input 90V to 264V DC: Input 40 to 62V Dual power supply 15A overcurrent protection |
| Maximum Switching Capacity of the Backplane Bus | 160Gbps |
| Switching Capacity of the Control Board | 160Gbps |
| MAC addresses | 16K |
| Uplink interface | 4 *10G SFP+ slots, 10G/1Gbps 4 *GE RJ45 |
| PON interface | 16*GPON SFP Support Class B+/ Class C+/ Class C++ |
| Configuration management | Supports EMS/Web/CLI/Telnet management mode. System configuration with SNMP v1/v2/v3 SNTP (Simple Network Time Protocol) Software upgrade with FTP client Support flexible debugging methods |
| PON features | GPON | Satisfy ITU-T G.984.x/G.988.x standard Access 128 terminals for single fiber PON Each PON port supports 4K GEM-PORT and 1K T-CONT Transmit rate: downstream 2.488Gbit/s, upstream 1.244Gbit/s ODN Optical link loss: 28dBm (Class B+), 32dBm (Class C+) Downstream wavelengths 1490nm, Upstream wavelengths 1310nm Maximum 60 KM PON transmission distance Maximum transmission distance of 20KM Support Bi-directional FEC (Forward Error Correction) Support AES-128 encryption function Support NSR (Non Status Reporting) DBA and SR (Status Reporting) DBA ONU terminal legitimacy certification, report illegal ONU registration ONU batch software upgrade, fixed time upgrade, real time upgrade Satisfy ITU-T G.984.3 ONU automatic discovery and manual configuration Satisfy ITU-T G.984.3 and ITU-T G.984 alarm and performance monitoring Satisfy ITU-T G.984.4 and ITU-T G.988 standard OMCI management function Support optical link parameter measurement and diagnostic functions, including terminal power outage, fiber breakage, and other alarm functions |
| L2 features | MAC | Satisfy IEEE802.1d standard Supports 8K MAC address capacity Support for MAC address automatic learning and aging Supports static and dynamic MAC table entries |
| VLAN | Supports 4096 VLAN Supports VLAN passthrough, 1:1 VLAN conversion, N:1 VLAN aggregation, and QinQ functions Supports port QinQ and flexible QinQ (Stack VLAN) Support the addition, deletion, and replacement of VLAN based on ONU service flow | |
| RSTP | Compatible Spanning Tree Protocol (STP) Support configuring transit limit Support configuring spanning tree bridge priority Support configuring spanning tree Max age Supports fast convergence | |
| Port | Supports Bi-directional bandwidth speed limit for ports Support port storm control Supports port ACL function Supports port isolation Supports port mirroring Support port optical module management Support port traffic statistics and monitoring Supports static and LACP dynamic aggregation port aggregation | |
| LACP | Link aggregation supporting single or double layer VLAN Support 2 TRUNK groups Support load sharing mode Support system priority configuration function | |
| Service characteristics | Ethernet protocol | EEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1ad, VLAN QinQ IEEE 802.1w, RSTP IEEE 802.3ad physical link static / dynamic aggregation (LACP) |
| DHCPv4 & DHCPv6 | DHCP Relay /Snooping Support Option60 to identify device types Support custom extended device type Support inserting Option82 information for DHCP relay message DHCPv6 Relay | |
| IP routing | Supports IPv4/v6 static routing Supports IPv4 dynamic routing protocols for OSPF, ISIS, and BGP Supports IPv6 dynamic routing protocols for OSPFv3 and ISISv6 Supports 512 hardware IPv4 routing tables Supports 8k IPv4 arp table entries Supports 8K IPv6 neighbor table entries | |
| Multicast | Supports IGMP v1/v2/v3, IGMP Snooping, and IGMP Proxy Supports MLDv1/v2, MLD Snooping, and Proxy Supports controllable multicast and VLAN based IPTV multicast Supports 2048 hardware multicast tables | |
| QoS | Support data packet priority labeling and stream classification Supports 8 priority queues and provides SP and WRR scheduling strategies Support CAR, traffic supervision, and traffic shaping Support congestion avoidance mechanisms, including functions such as Tail-Drop and WRED | |
| ACL | Support for standard and extended ACL Support flow classification and definition based on source/destination MAC, source/destination IP, source/destination protocol port, VLAN ID, Ethernet protocol type, IP upper layer protocol type, IP protocol version, 802.1P priority, IP priority, DSCP priority, etc. Supports packet mirroring and redirection for ports or custom streams Support ACL based on source IPv6 address, destination IPv6 address, port number, protocol type, etc. | |
| Security features | Link protection | Multiple path backup BFD, Traffic protection can be performed when link failure occurs |
| Equipment protection | Dual power board redundant backup, supporting multiple redundancy modes of AC-AC, DC-DC, and AC-DC | |
| User security | Anti-ARP-spoofing, anti-ARP-flooding MAC address binds to port and port MAC address filtration ACL controls TELNET access Tacacs, Radius, Local enable, None authentication | |
| Device security | Anti-DOS attack, ARP detection and worm attack https Web Server SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users | |
| Network security | Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding Anti-attack flood attack and automatic suppression URPF to prevent IP address counterfeit and attack DHCP Option82 upload user’s physical location Plaintext authentication of OSPF, BGPv4 and MD5 cryptograph authentication Data log and RFC 3164 BSD syslog Protocol |
